Motion Sensor

Motion Sensor

Regular price $3.65 USD
Regular price Sale price $3.65 USD
Sale Sold out

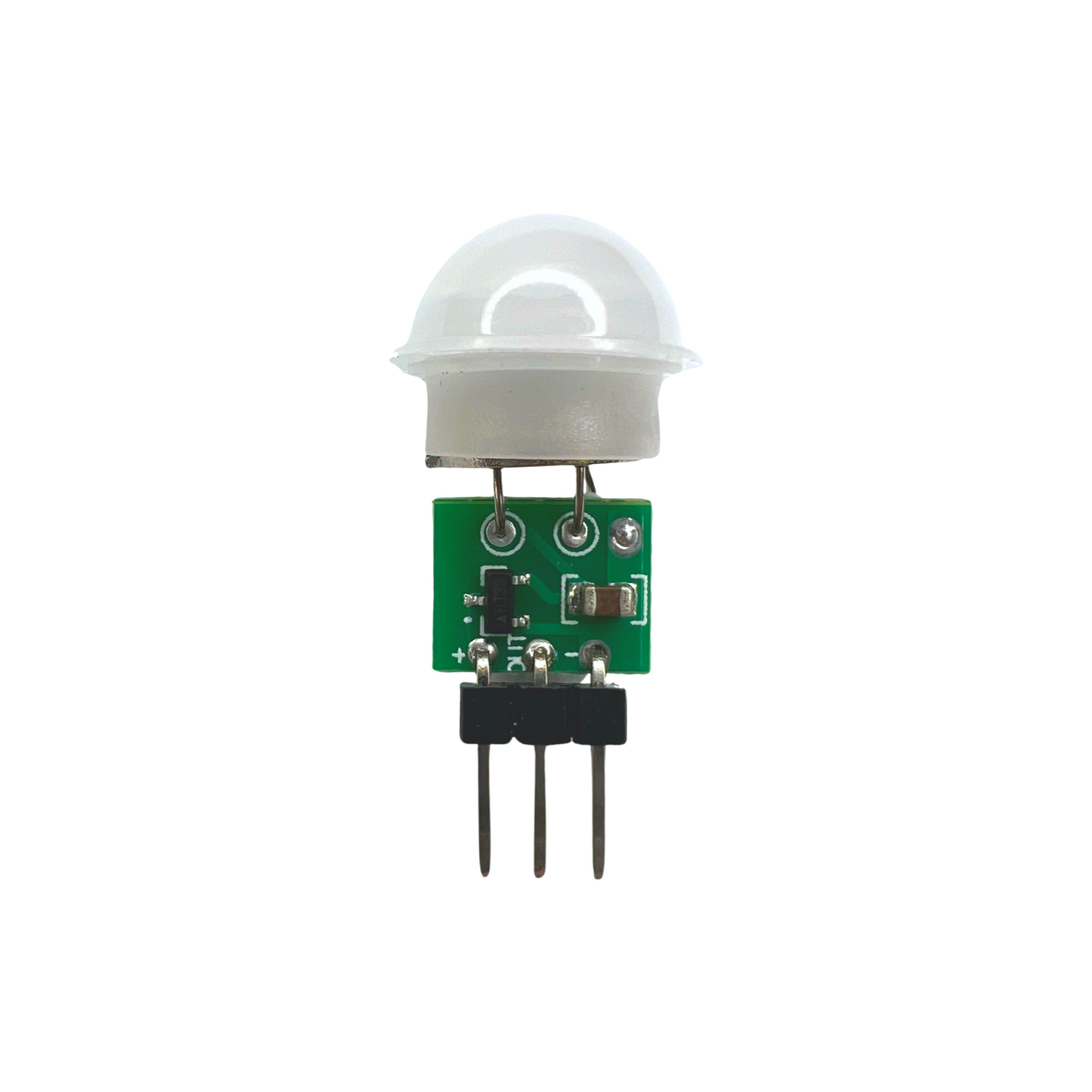

AM312 Mini Pyroelectric PIR Human Sensor Module

The AM312 Mini PIR Sensor is a compact, low-power solution perfect for DIY projects such as security systems, automatic lighting, or any application requiring motion detection. Its small size and low power consumption make it an excellent choice for battery-powered applications or when space is at a premium.

See it in action HERE.

Key Features:

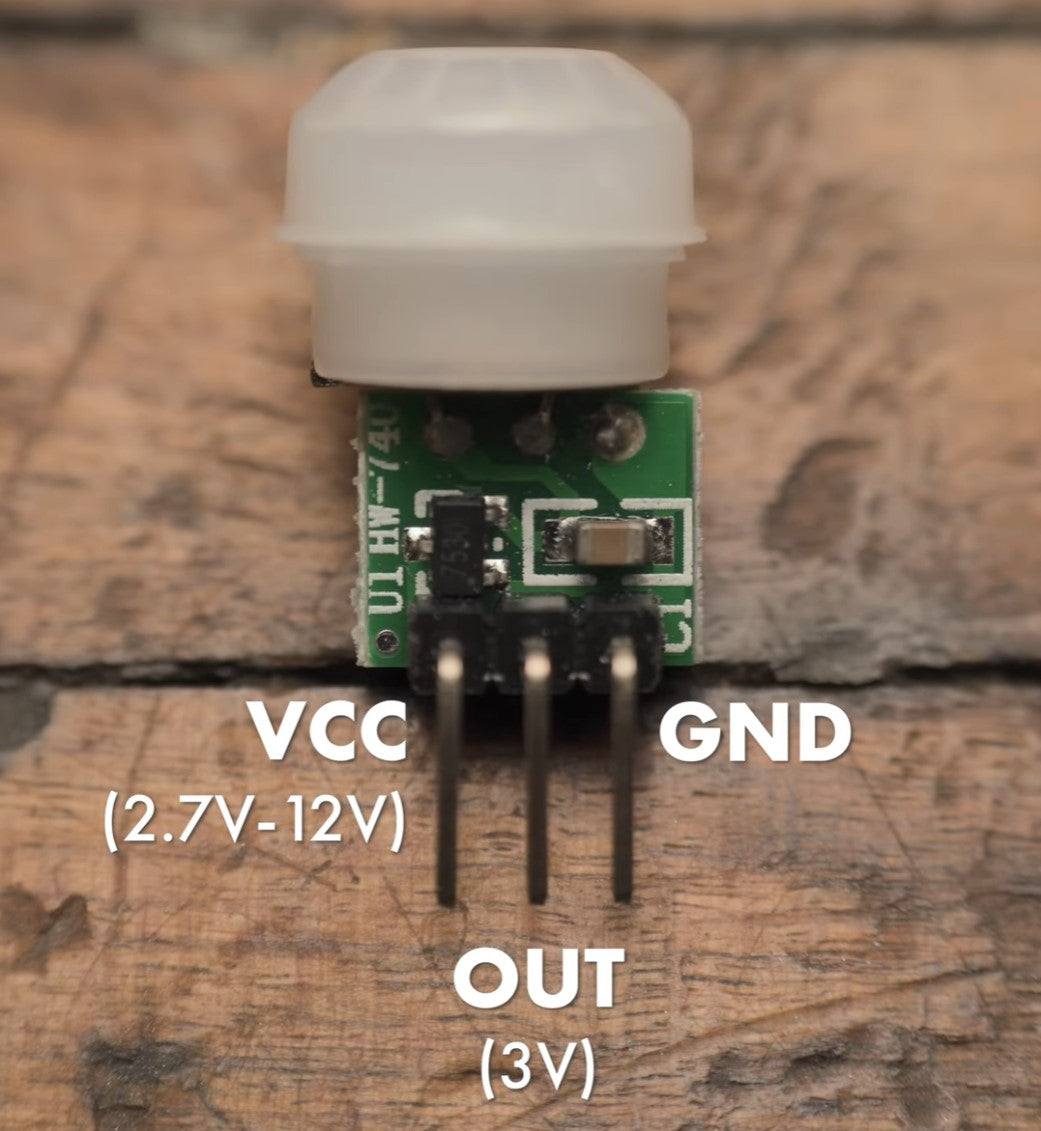

  • Voltage Range: Operates on a low power supply with a working voltage of DC 2.7-12V, making it ideal for battery-operated projects.
  • Ultra-Low Power: The static power consumption is less than 0.1mA, ensuring minimal impact on your project's power budget.
  • Immediate Response: Features a quick delay time of just 2 seconds after detecting motion, followed by a blocking time of 2 seconds to prevent repeated triggers.
  • Trigger Mode: Offers a repeatable trigger mode, meaning it can detect continuous motion within its range.

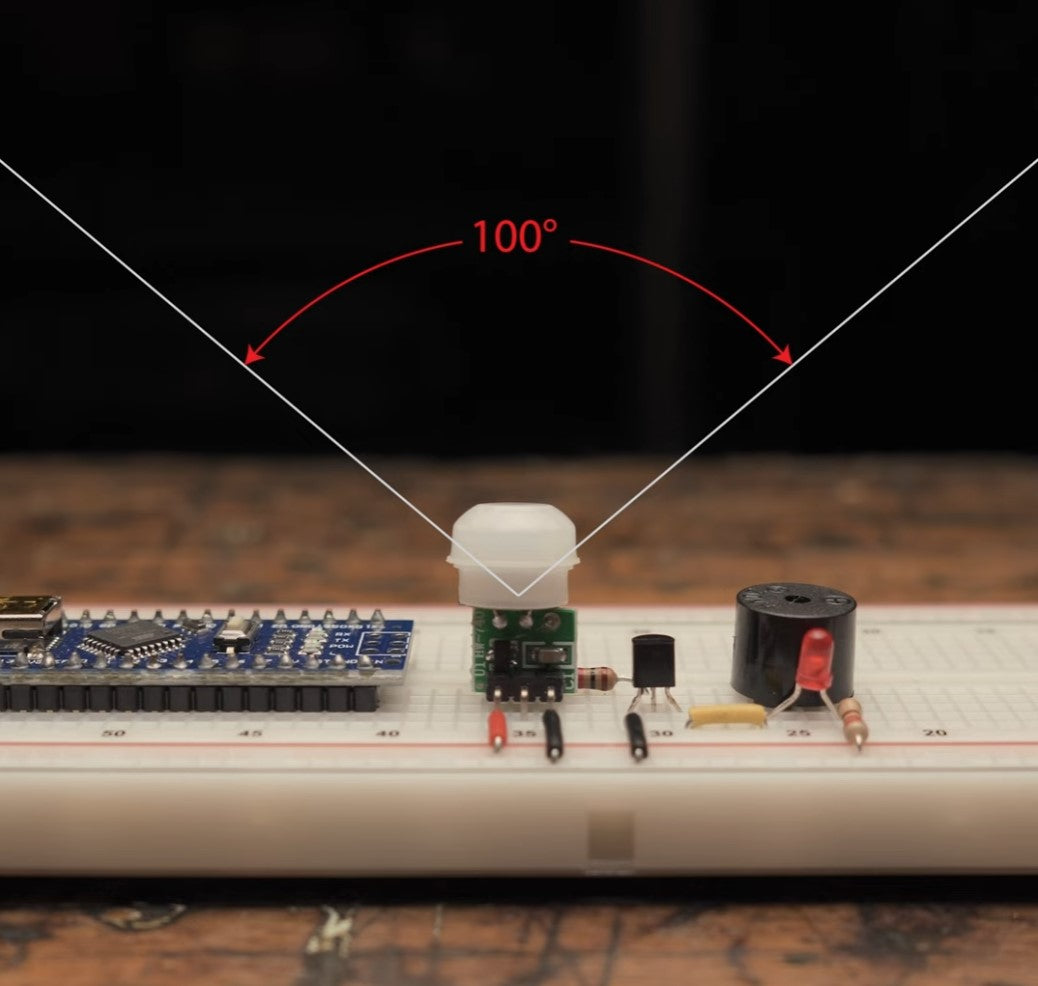

  • Wide Sensing Area: Provides a sensing range within a ≤100-degree cone angle and 3-5 meters distance, depending on the lens used, perfect for room-scale projects.
  • Adaptable: Designed to function in various environmental conditions with a working temperature range from -20 to +60°C.
  • Compact Design: With PCB dimensions of just 10mm*8mm, it's perfect for tight spaces or where discretion is required.
  • Module Lens: Equipped with a small lens to focus the detected infrared radiation, enhancing the sensor's sensitivity and range.
