OLED 128x64 I2C Display VGSS

OLED 128x64 I2C Display Module

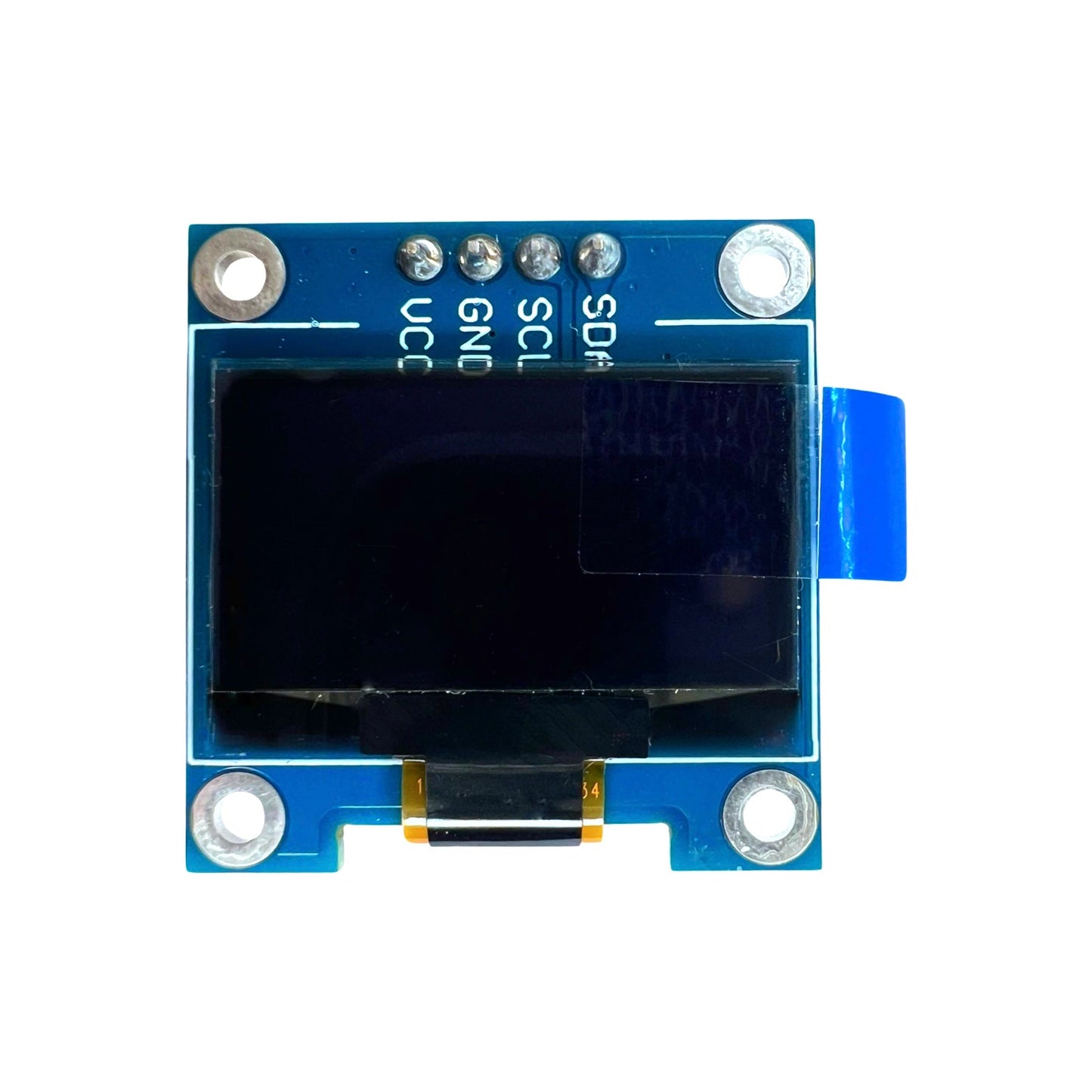

VCC | GND | SCL | SDA

The OLED 128x64 I2C Display is a low-power display module perfect for a variety of DIY electronics projects. The 0.96-inch monochrome display delivers clear, sharp visuals without the need for backlighting, making it ideal for power-sensitive projects.

Key Features:

• 128x64 pixel resolution for crisp graphics and text.
• I2C interface for easy two-wire communication.
• Pin order:
  • VCC | GND | SCL | SDA
• Wide viewing angle with excellent visibility in various lighting conditions.
• Self-illuminated, energy-efficient OLED technology.
• Compatible with Arduino, ESP32, Raspberry Pi, and more.
• Compact 0.96-inch size, perfect for portable and space-constrained designs.

Specifications:

• Display size: 0.96 inches
• Resolution: 128x64 pixels
• Interface: I2C (SDA, SCL)
• Supply voltage: 3.3V to 5V
• Operating temperature: -40°C to +85°C
• Dimensions: 27mm x 27mm x 4mm (approx.)
• Current consumption: < 20mA during active operation
