2-Pin Thermistor Adapter

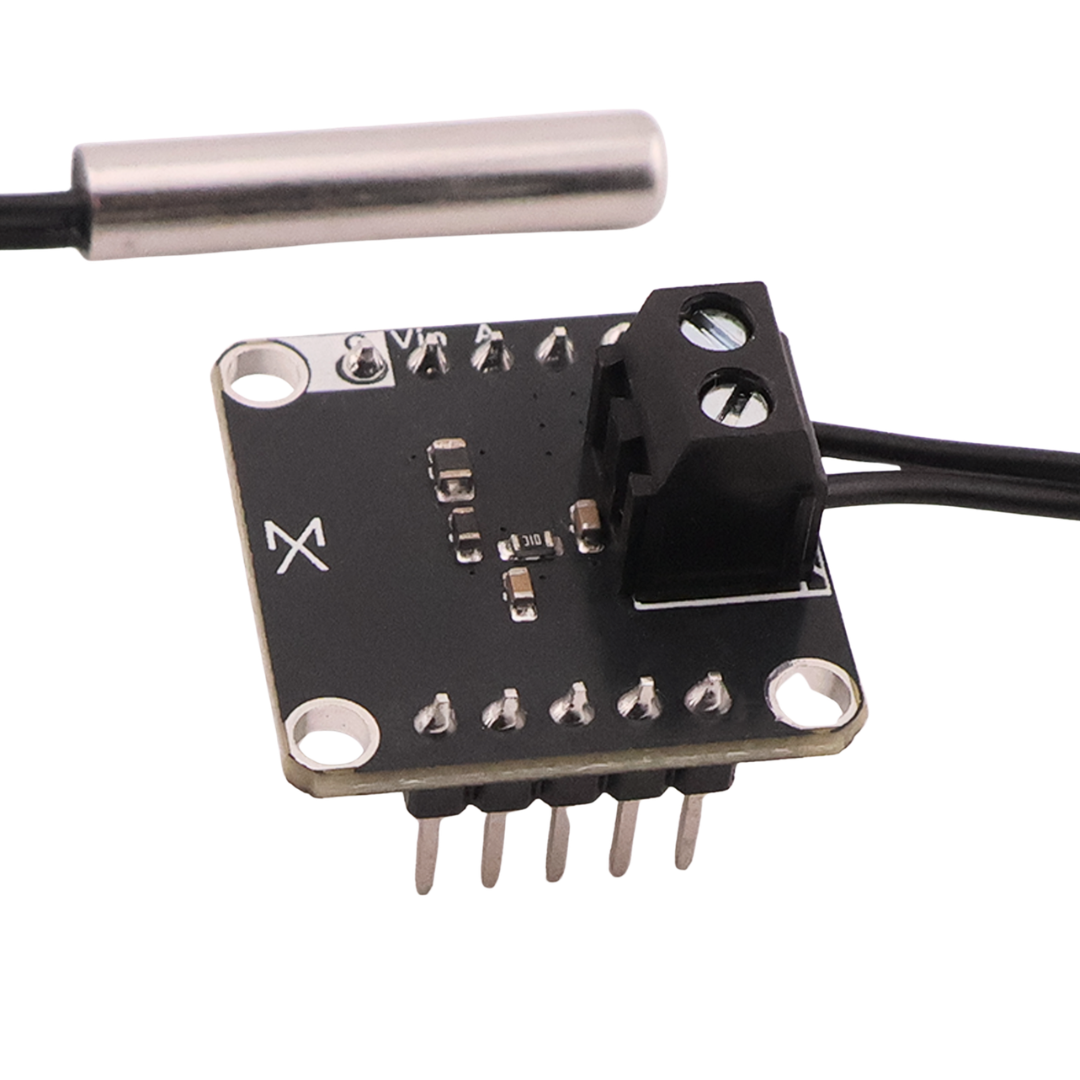

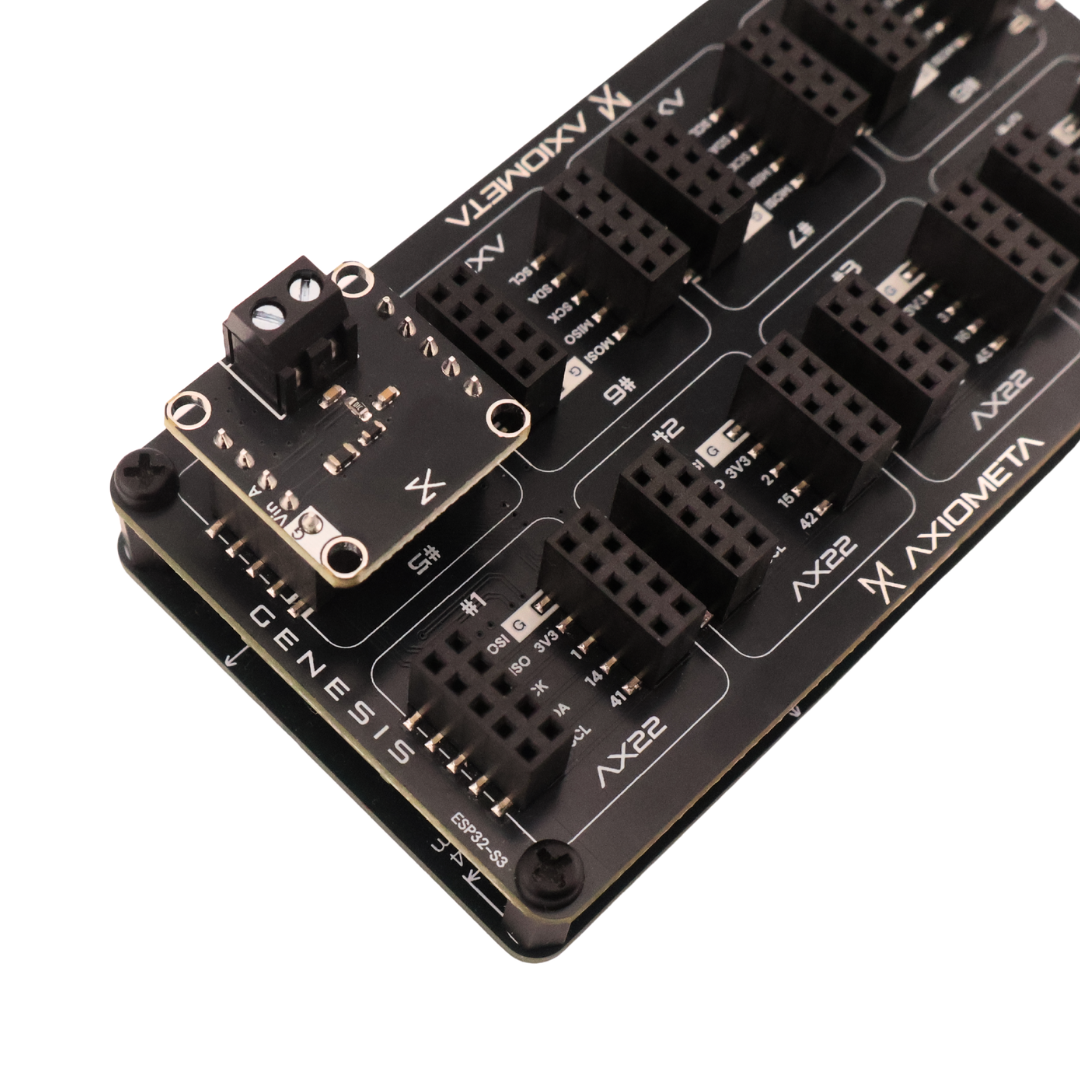

A clean analog front-end for any 2-wire NTC thermistor. Screw your thermistor into the onboard terminal block, and the module handles the rest using a 10K reference resistor, voltage divider, and power filtering. Reads out as an ADC voltage proportional to temperature, ready for Steinhart-Hart or simple lookup conversion in firmware. Ideal for enclosure monitoring, fluid temperature sensing, or any project where you need a simple, noise-free temperature reading. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- Screw Terminal for 2-Wire NTC Thermistor
- Precision Voltage Divider Circuit
- Analog Output
- 1.8 V, 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Circuit Schematic
3D Model (STEP)
Pinout Diagram
