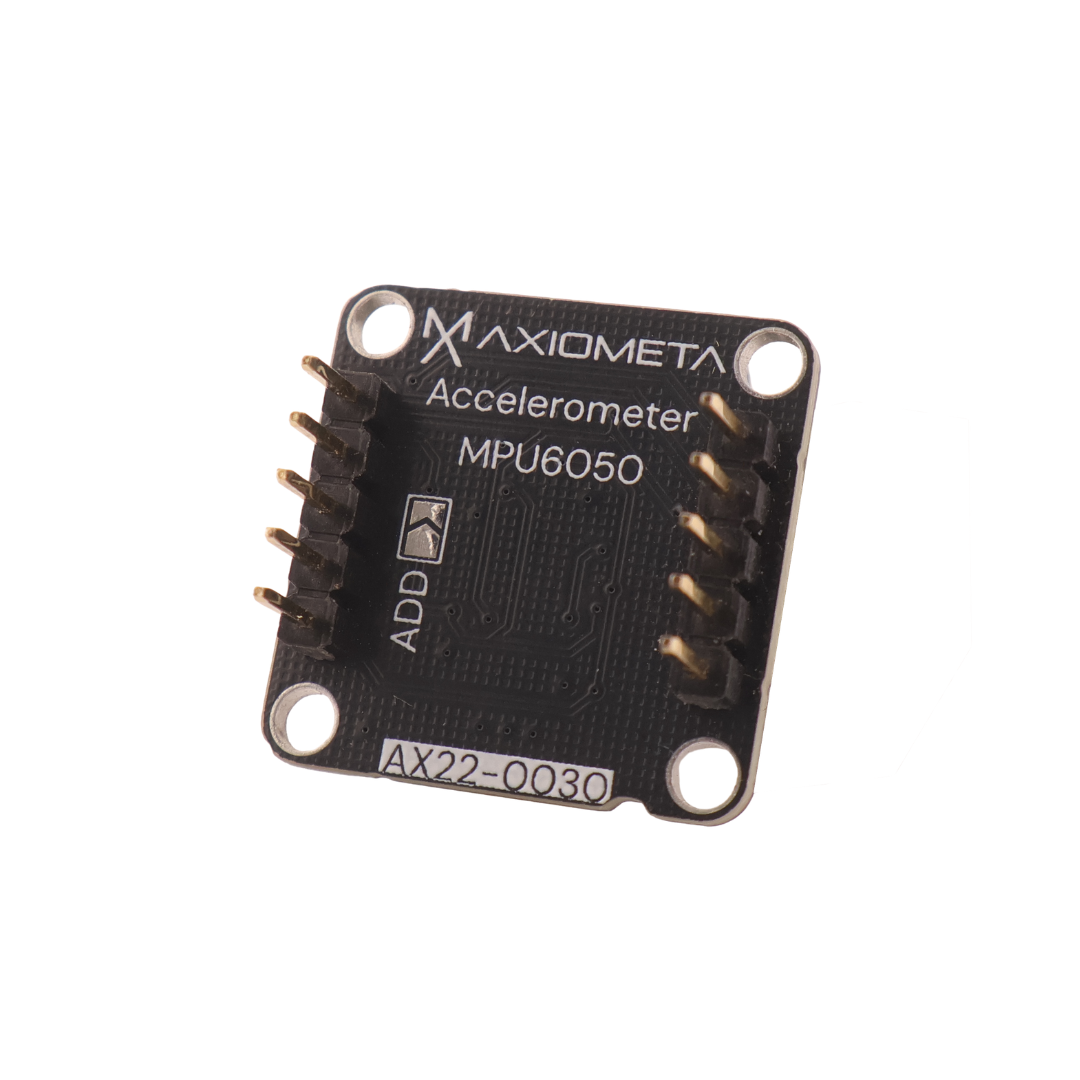

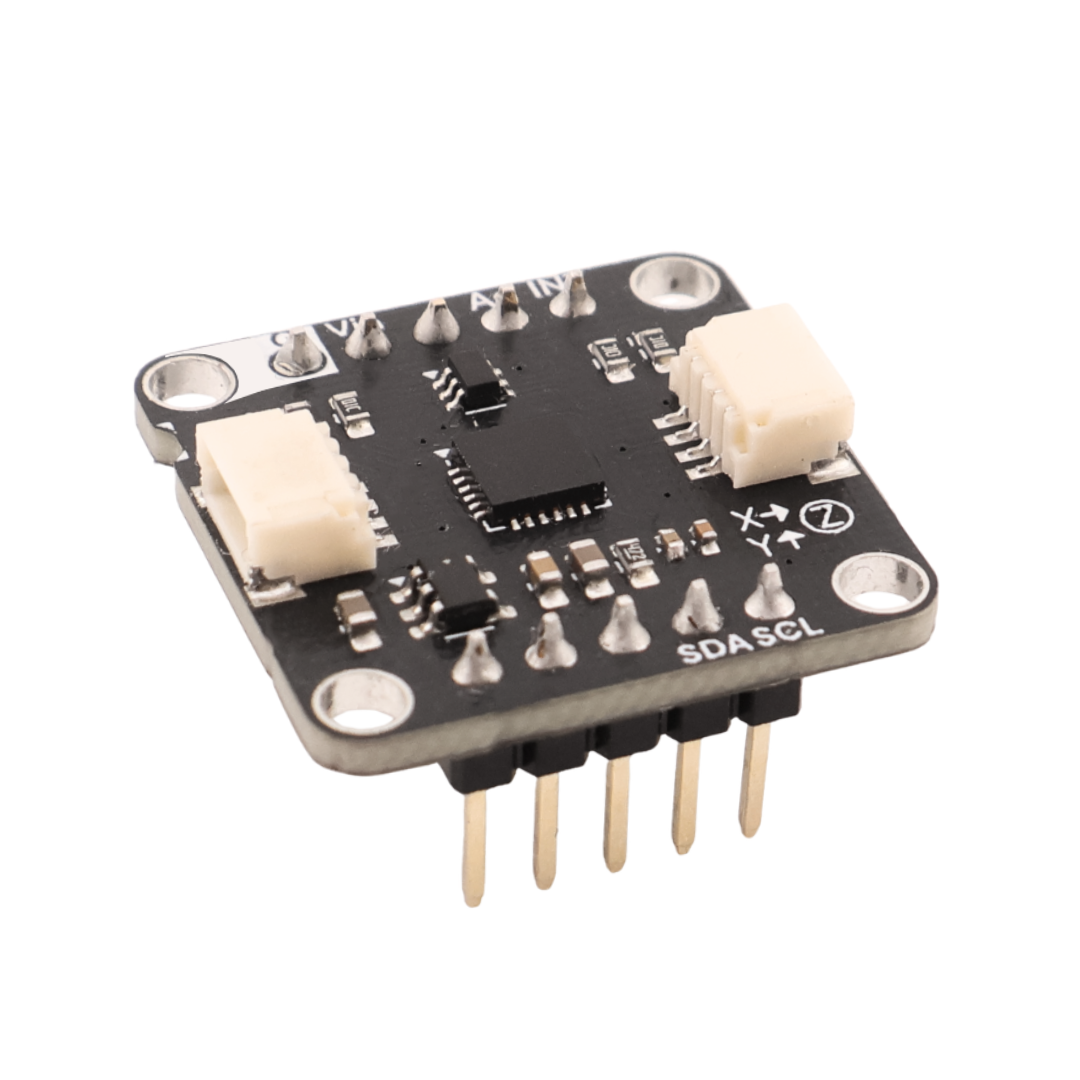

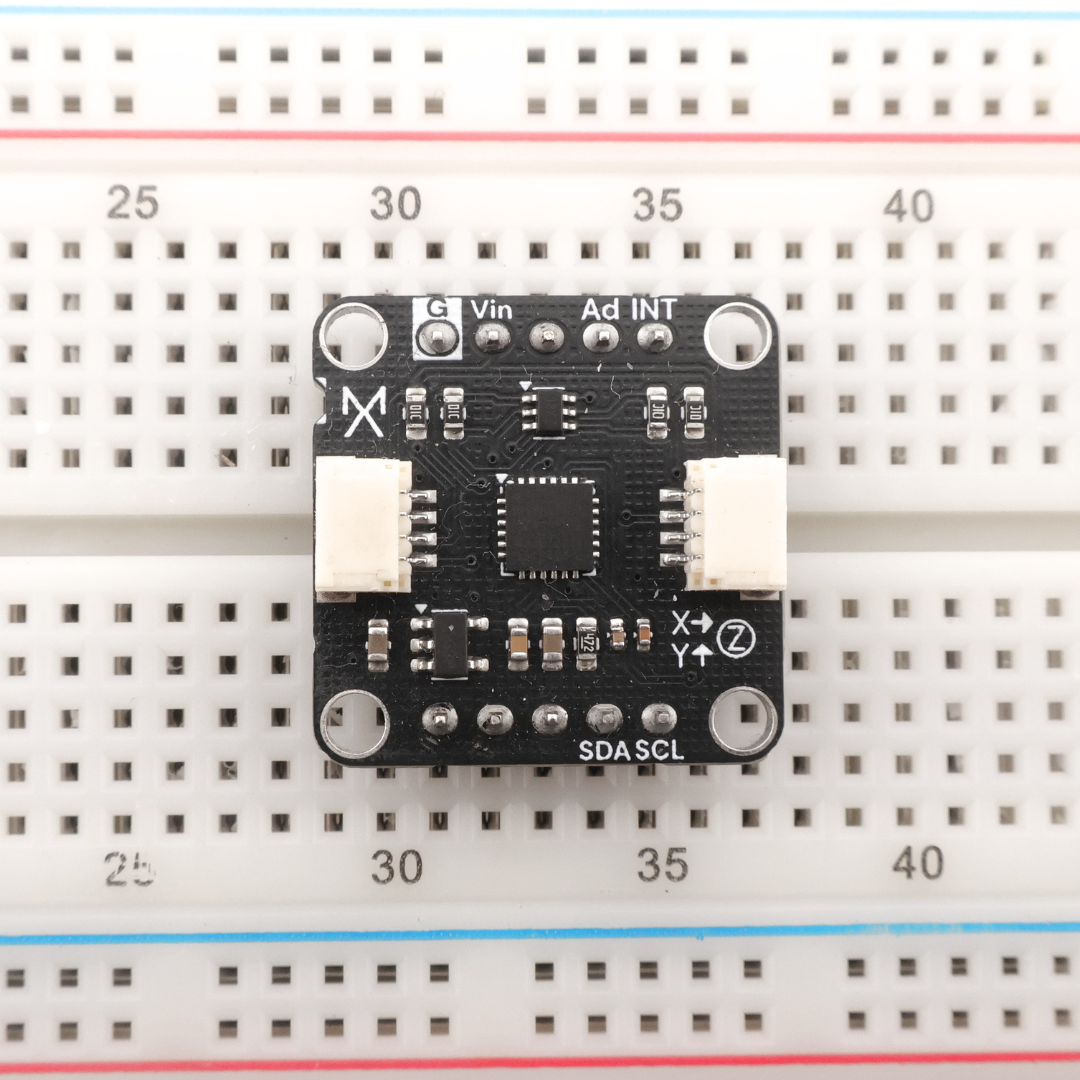

6-Axis IMU (MPU6050)

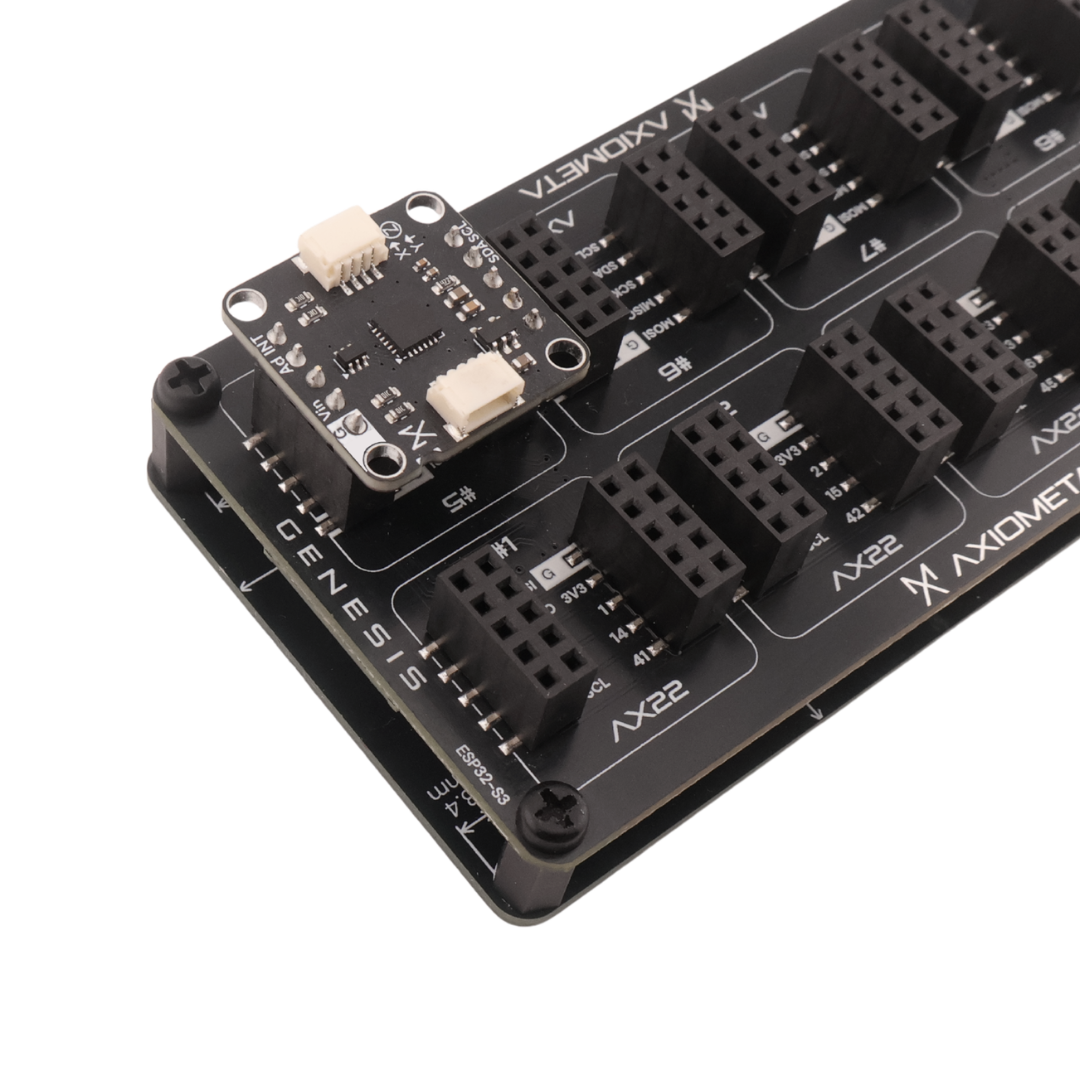

Add motion sensing, tilt detection, and vibration analysis to any project with this board. A proven InvenSense MPU-6050 (3-axis accelerometer + 3-axis gyroscope) sits on a 22 × 22 mm PCB, buffered by a 3 V LDO and bidirectional level shifters so any 1.8 V, 3.3 V, or 5 V microcontroller can talk I²C straight away. The chip’s built-in Digital Motion Processor (DMP) can fuse accel-gyro data internally, off-loading costly math from your MCU, while an optional interrupt line lets you wake on motion or FIFO thresholds. Drop it into any backplane and you’re logging angles, steps, or vibrations in minutes with Arduino IDE, MicroPython, or MicroBlocks. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- InvenSense MPU-6050 6-Axis IMU
- 3-Axis Accelerometer + 3-Axis Gyroscope
- I²C Interface
- 1.8 V, 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
