Axiometa Genesis Mini

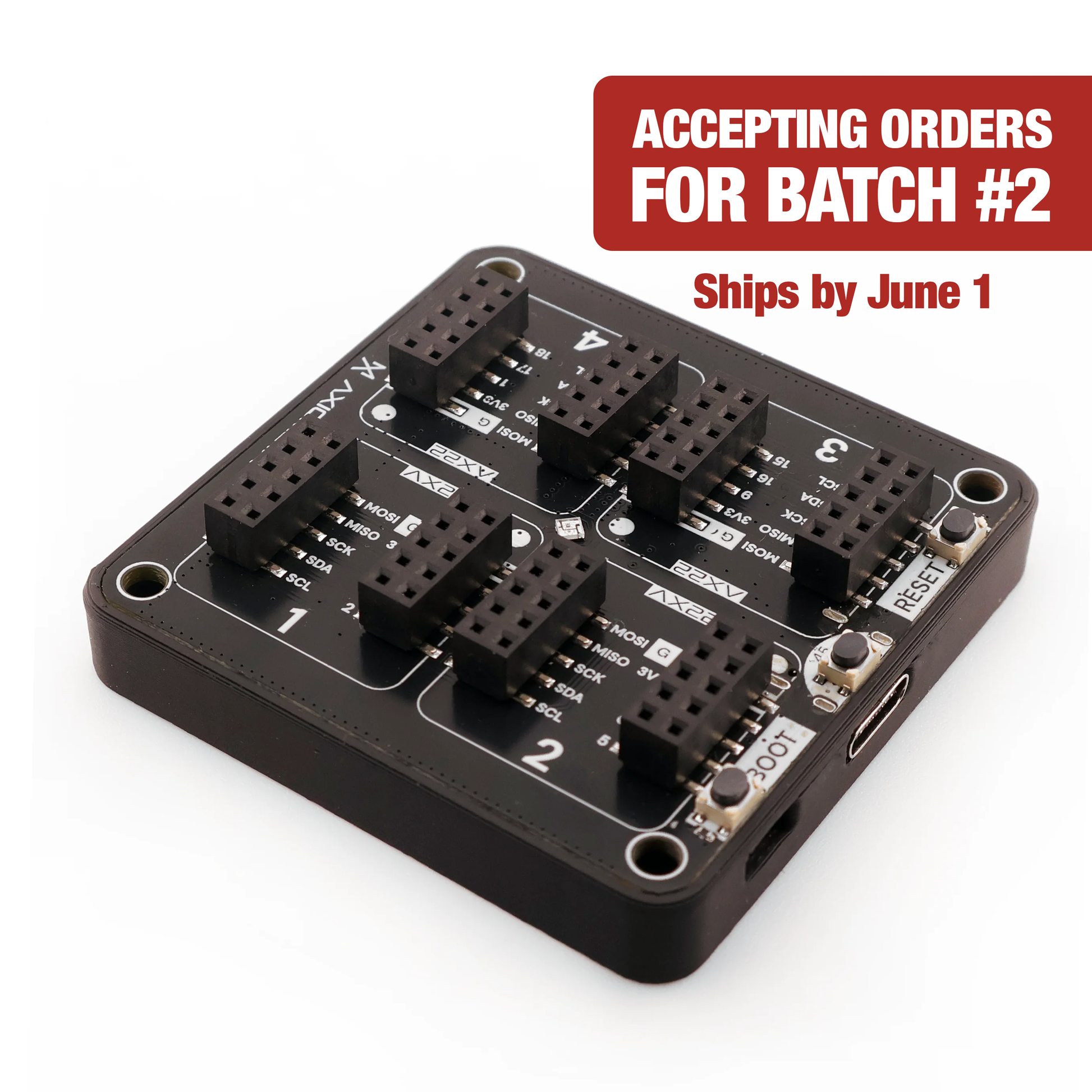

NOTE: Due to high demand, orders placed now will ship by June 1

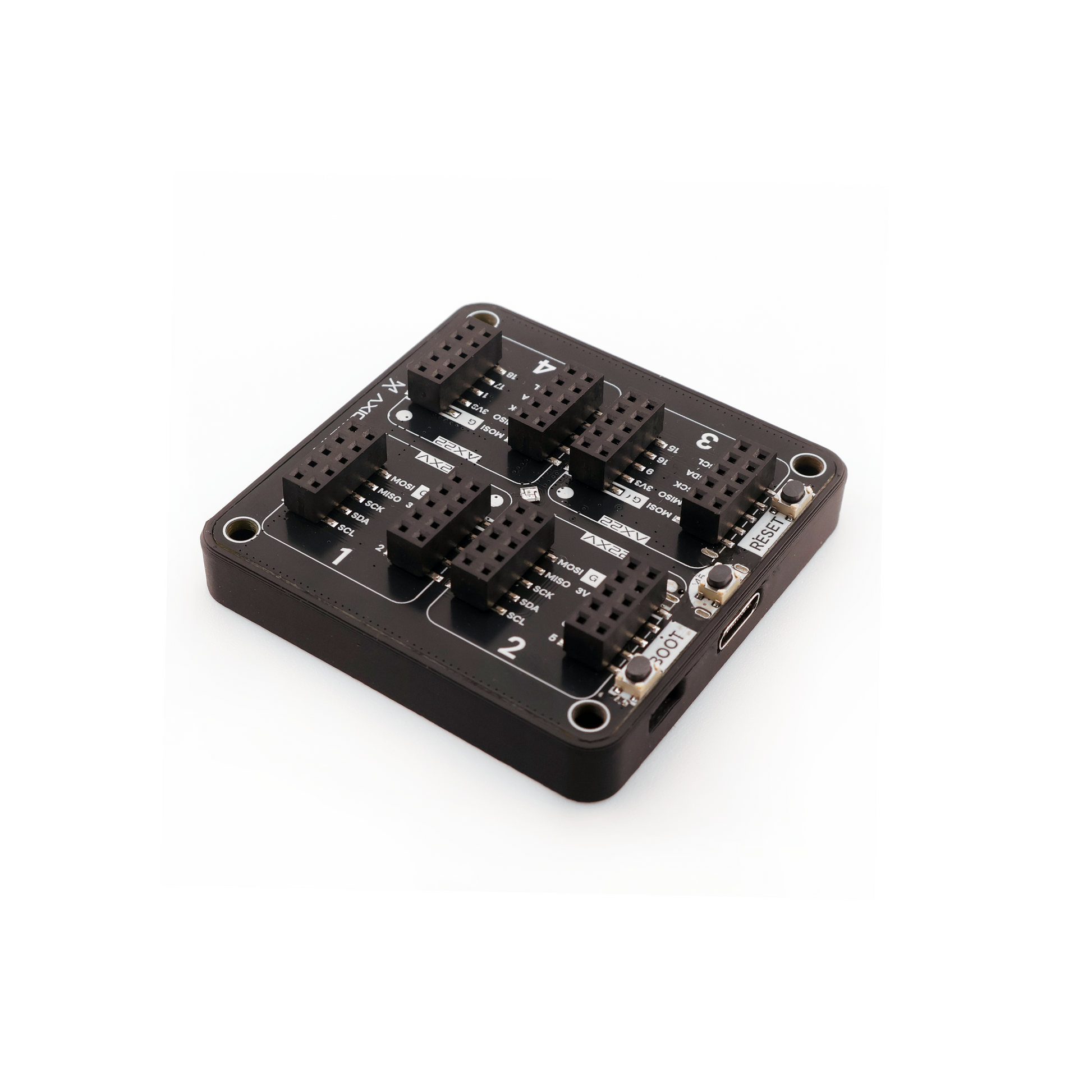

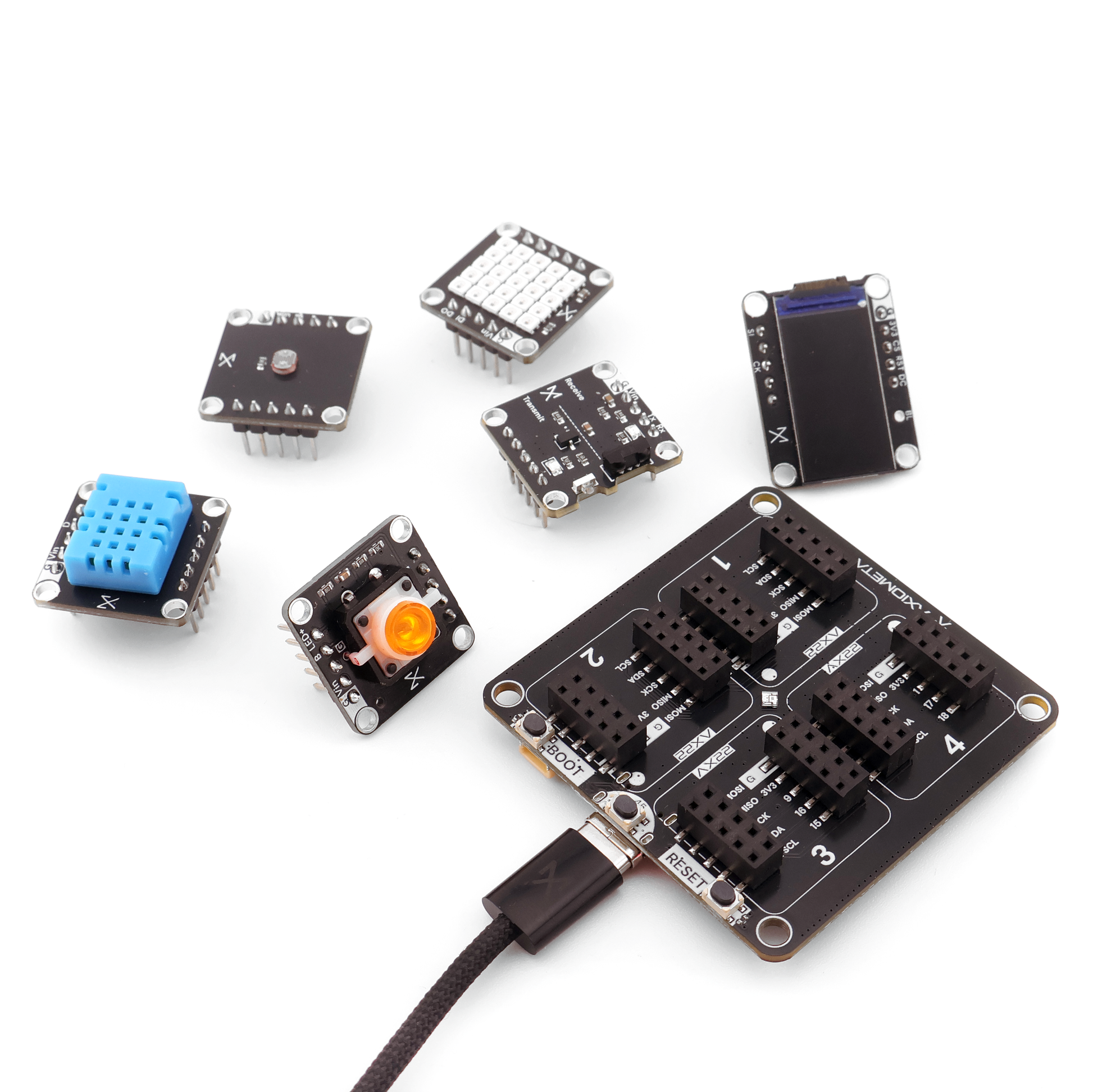

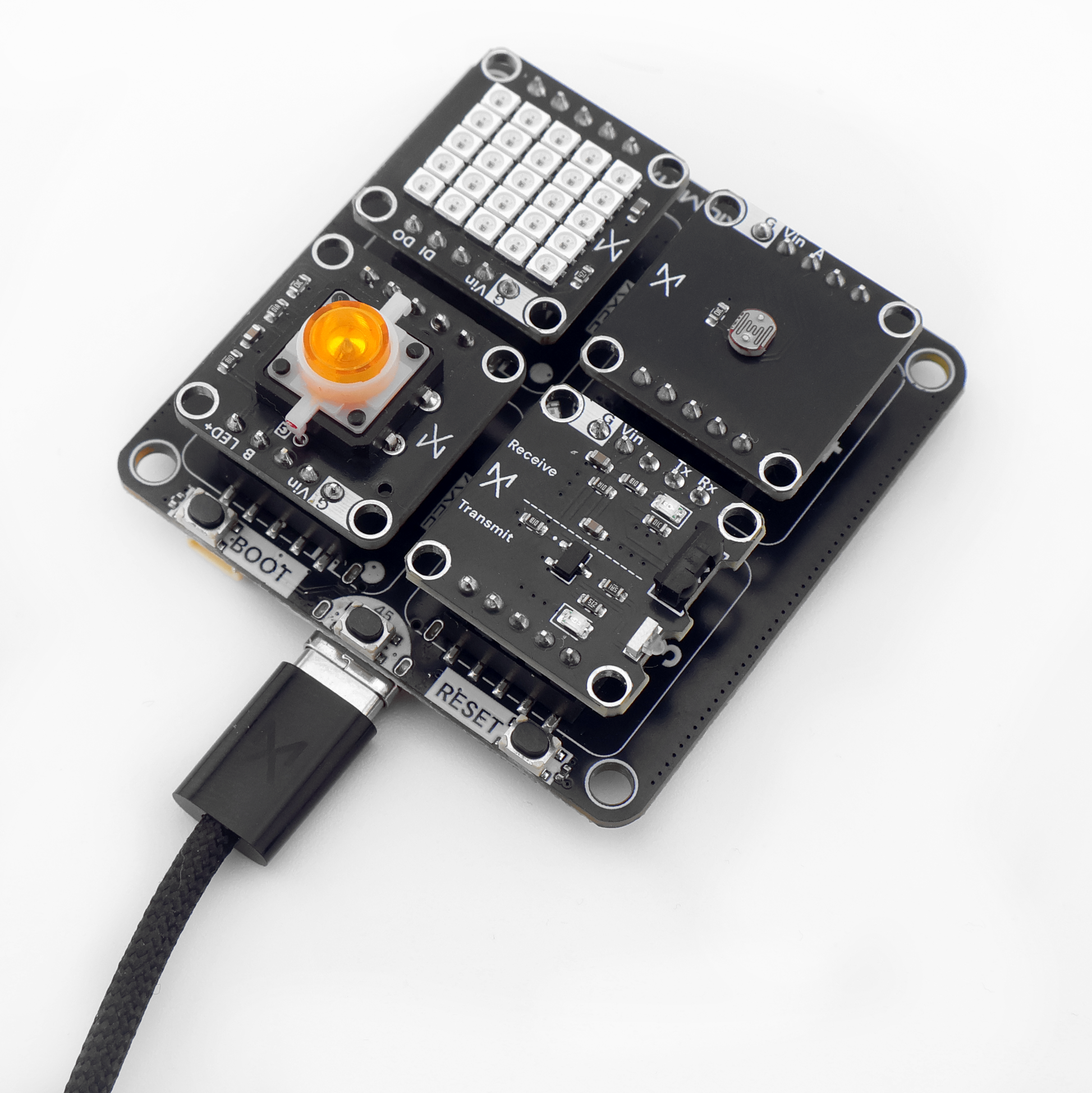

The Genesis Mini is a Wi-Fi-enabled modular prototyping board powered by the ESP32-S3. It's the heart of the Genesis Modular system from Axiometa — plug sensor, display, motor, and input modules directly into its four AX22 ports with no breadboard wiring required. Modules lock securely in place for reliable electrical connections every time. Use it as a standalone ESP32-S3 dev board, or build out a full modular project by snapping in any combination of Axiometa modules. Works with Arduino IDE, MicroPython, or MicroBlocks.

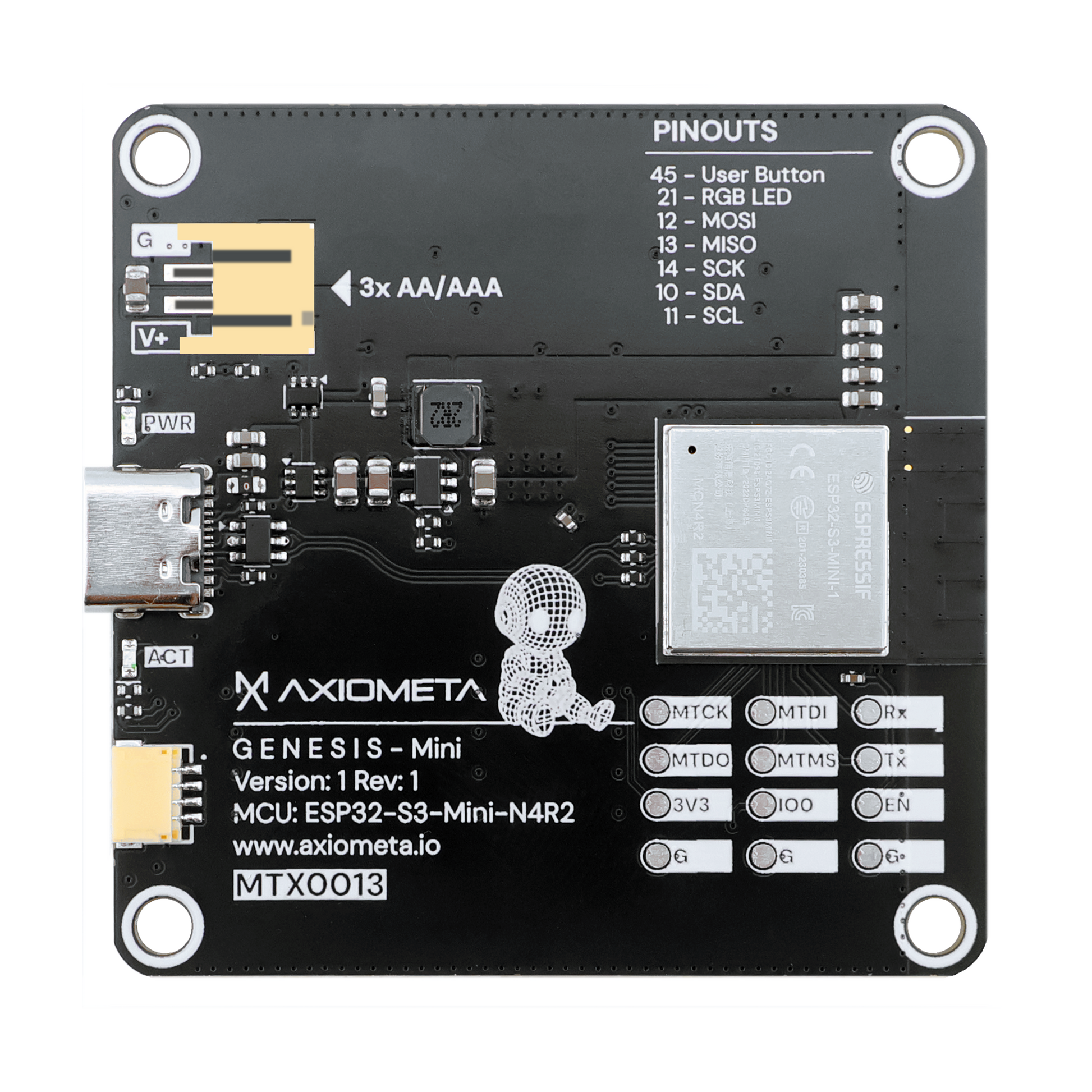

- 55 mm × 55 mm 4-Layer PCB
- 4× ⌀2.7 mm Mounting Holes
- ESP32-S3-Mini-1 MCU
- 4 MB Flash / 2 MB PSRAM
- 4× AX22 Module Ports
- 1× STEMMA QT Connector (I²C)
- USB-C for Programming & Power
- 3× AA/AAA Battery Connector
- Integrated NeoPixel LED
- User Buttons & Status LEDs
- Wi-Fi & Bluetooth 5 (LE)
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

MCU Datasheet (ESP32-S3)
Circuit Schematic
3D Model (STEP)
Getting Started Guide
