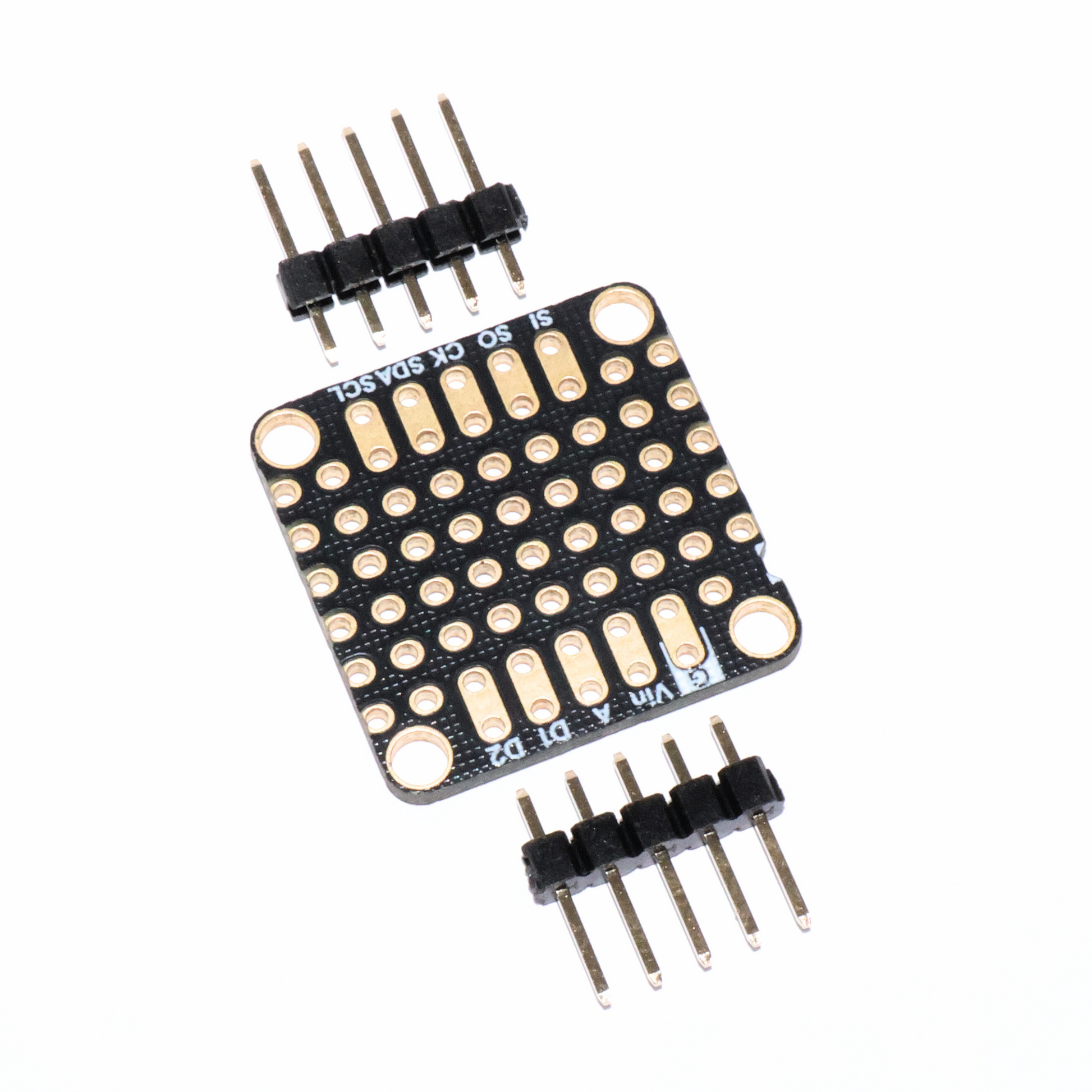

Empty Module (Perf Board)

This blank perf-board module gives you a pristine 22 × 22 mm canvas for one-off circuits and quick prototypes. The through-hole grid is pre-tinned and matches the pin pitch of standard headers, sensors, and discrete components, so you can drop in resistors, LEDs, whatever your project needs. It clicks straight into any carrier or backplane, letting you add custom logic, filters, level shifters, or quirky art circuits right alongside off-the-shelf AX22 boards. Perfect for rapid experiments, last-minute fixes, or bespoke features when no ready-made module quite fits the bill. Use it standalone for custom one-off circuits, or snap it into the Genesis Modular system from Axiometa to prototype directly in your modular setup.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- Through-Hole Grid
- Pre-Routed Power & Signal Traces
- AX22 Pin Header Footprint
- Blank Canvas for Custom Circuits

Circuit Schematic
3D Model (STEP)
Pinout Diagram
