Light Dependent Resistor

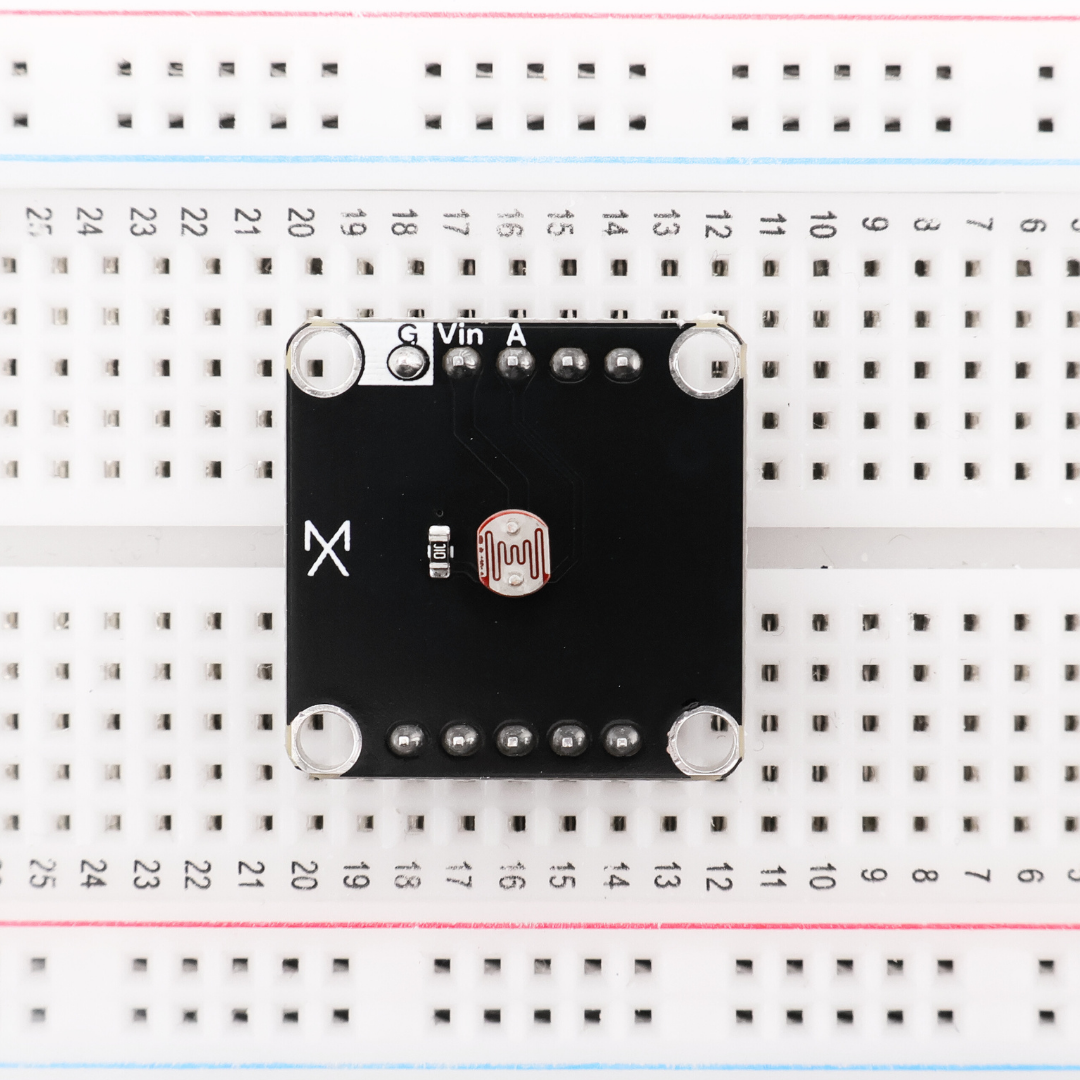

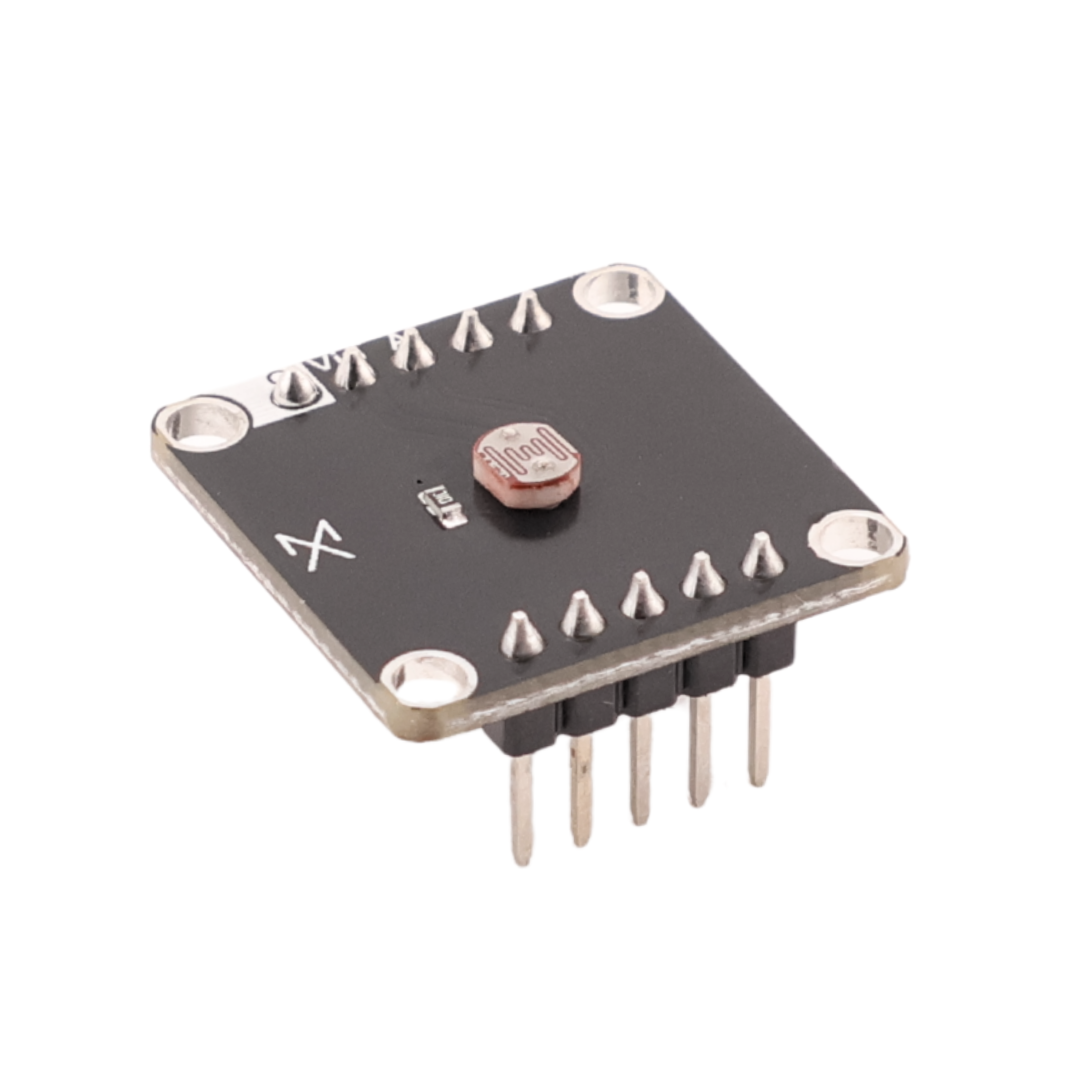

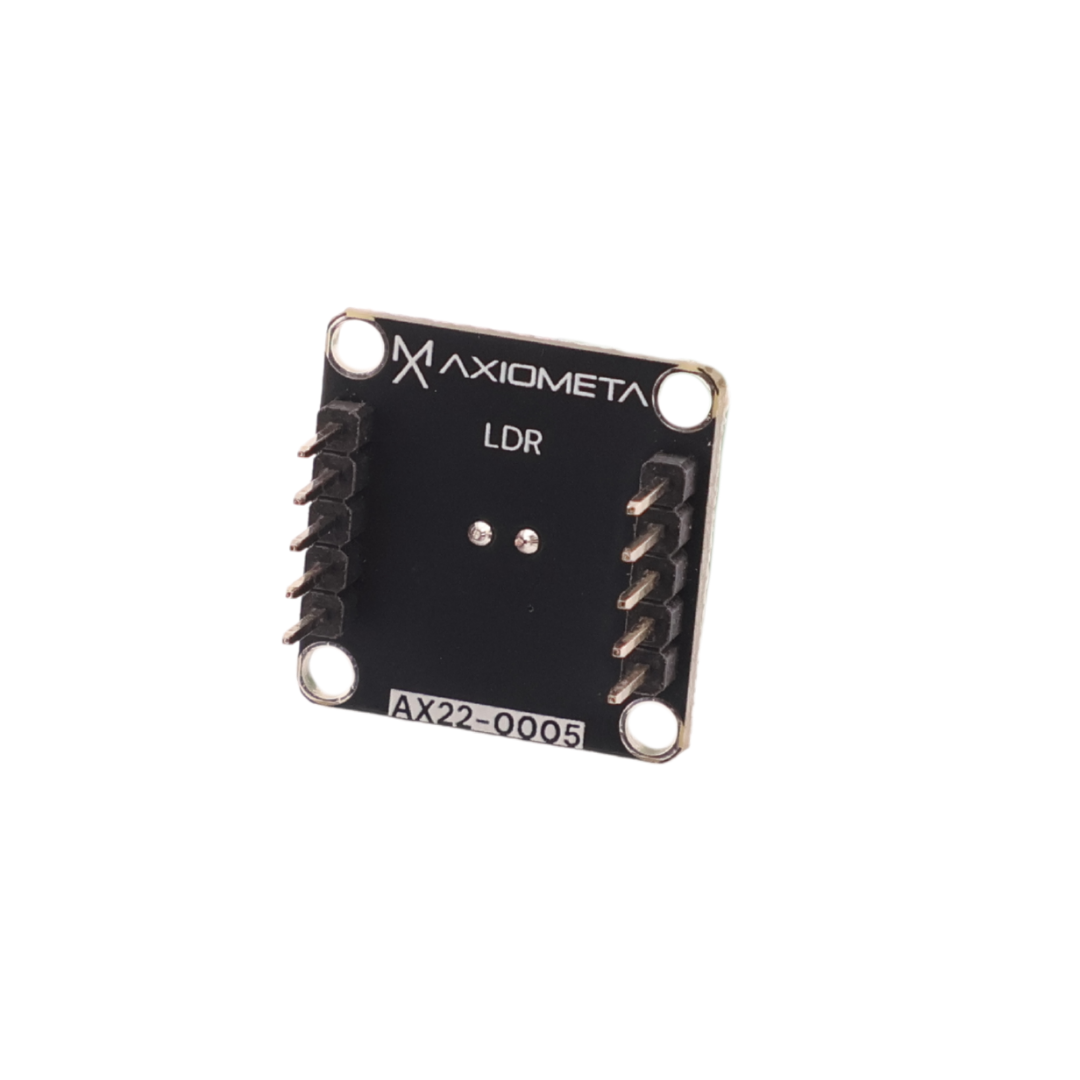

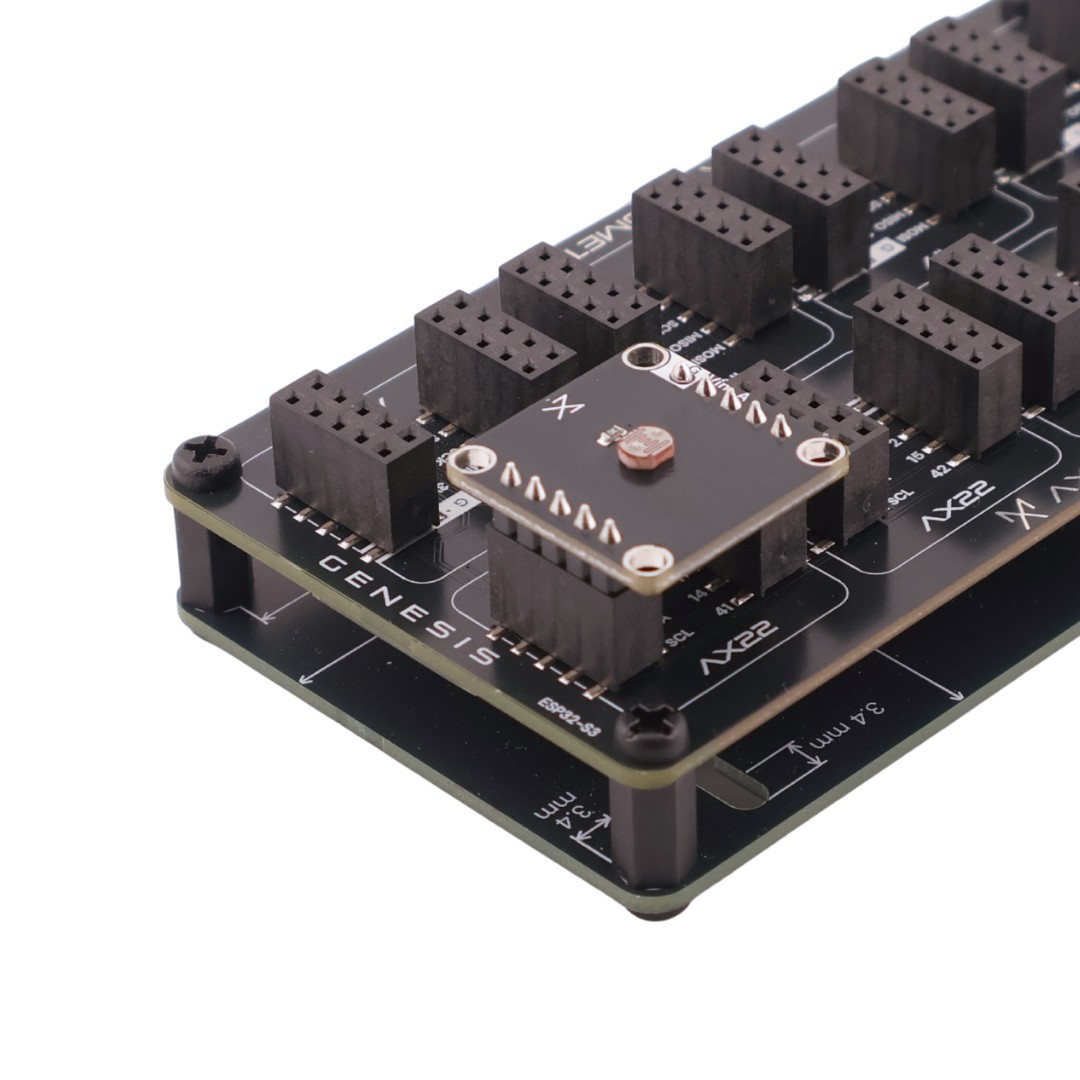

This module houses a light-dependent resistor with a dark resistance of 100 kΩ – 200 kΩ on a 22 × 22 mm PCB, yielding an analog voltage that smoothly follows ambient brightness and is effortless for any microcontroller’s ADC to read. It slots straight into AX22 systems with no special wiring, enabling automatic daylight detection, adaptive backlight dimming, or simple light-triggered events in minutes. Ideal for smart lamps, environmental loggers, or interactive installations where responsive, light-aware behavior is essential. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- LDR (100–200 kΩ Dark Resistance)
- Analog Voltage Output
- Precision Voltage Divider
- 1.8 V, 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
