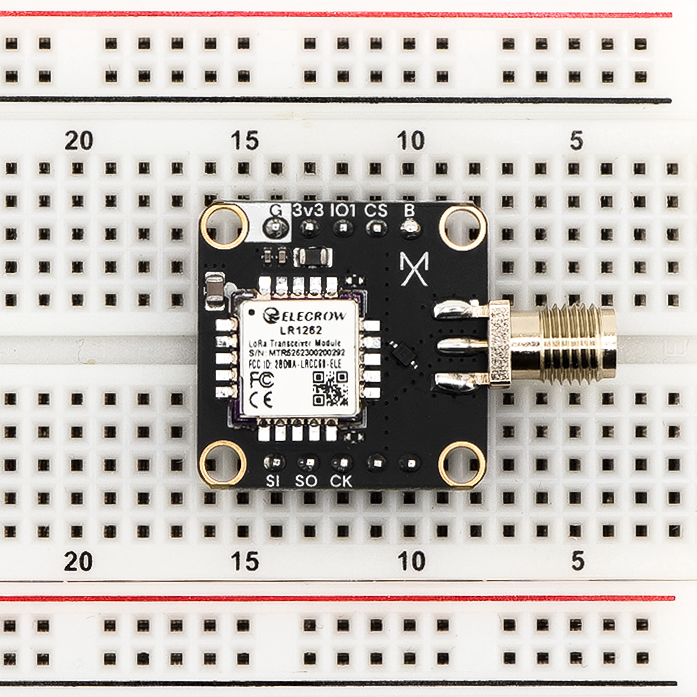

LoRa Module (LR1262)

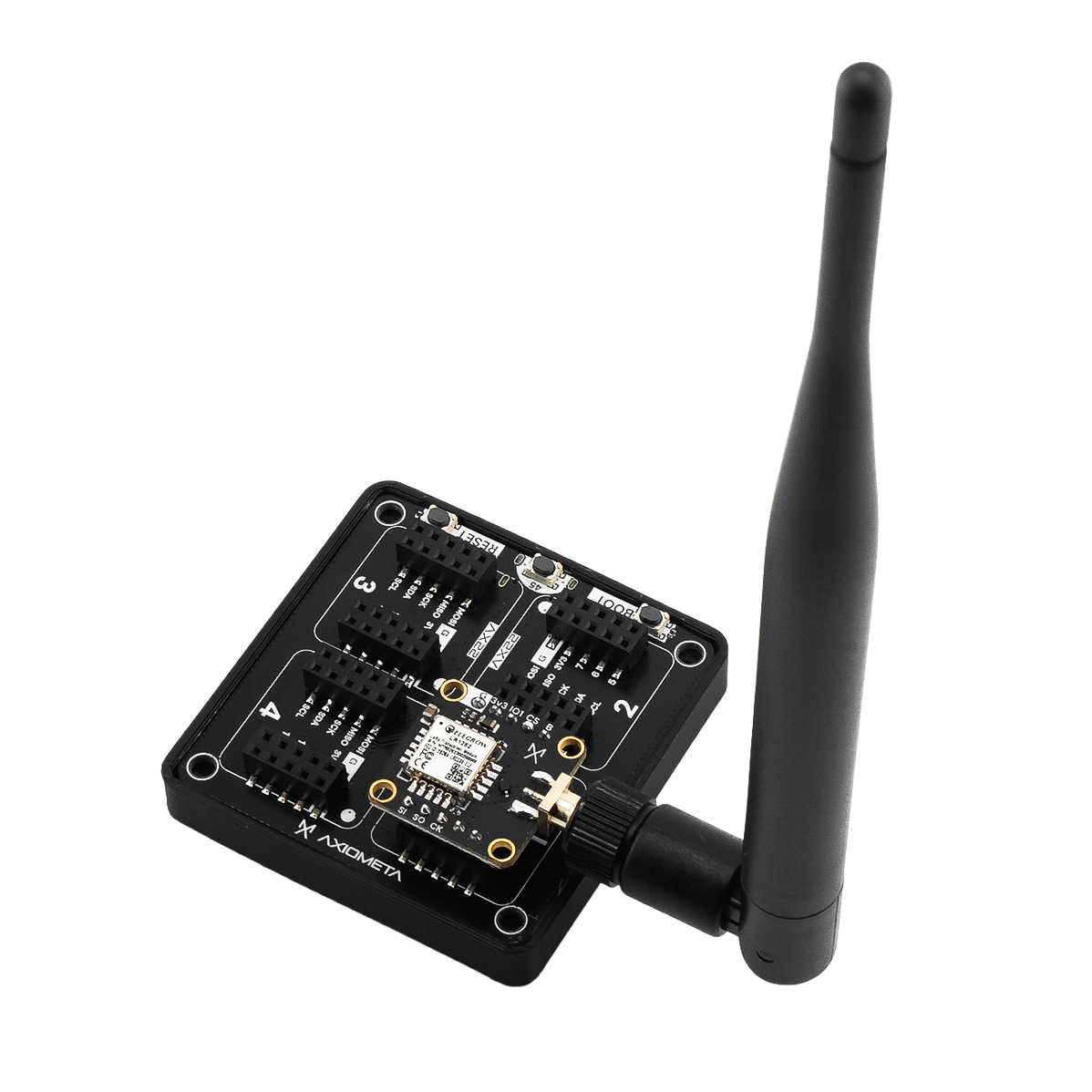

Send data far beyond Wi-Fi range. Built around Elecrow’s LR1262 with the Semtech SX1262 LoRa transceiver, this module delivers long-range, low-power wireless communication with up to +22 dBm transmit power and sensitivity down to -148 dBm. It supports LoRa and LoRaWAN across 850–930 MHz, making it ideal for remote sensors, telemetry, outdoor projects, and device-to-device links. Includes an SMA connector and external antenna, ready to get on the air.

Included antenna is tuned for 868-915MHz!

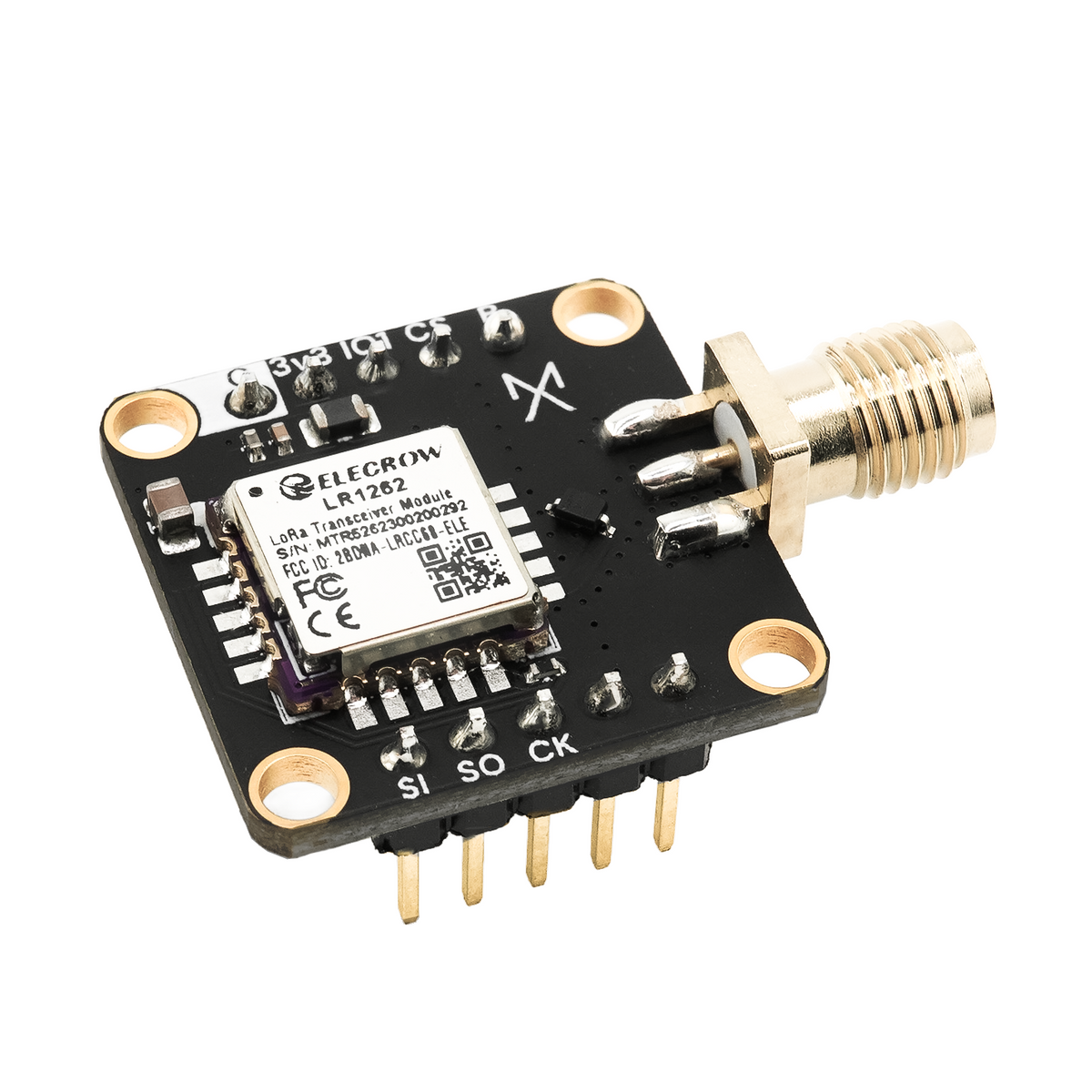

- Elecrow LR1262 LoRa module based on Semtech SX1262
- Long-range LoRa / LoRaWAN wireless communication
- 850–930 MHz ISM band support, suitable for 868 MHz and 915 MHz regions
- Up to +22 dBm transmit power
- Receiver sensitivity down to −148 dBm
- Up to 170 dB link budget
- LoRa, (G)FSK and GMSK modulation support
- SF5–SF12 spreading factor support
- 0.018–62.5 kbps data rate
- Industrial-grade 32 MHz TCXO for frequency stability
- Ultra-low-power operation, down to 1.62 µA in sleep mode
- SPI communication interface
- SMA antenna connector
- 22 mm × 22 mm square
- 4× ⌀2.7 mm Mounting Holes
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
