LRA Haptic Motor (DA7820)

⏳ This item is currently sold out — a new batch is on its way and will be available soon!

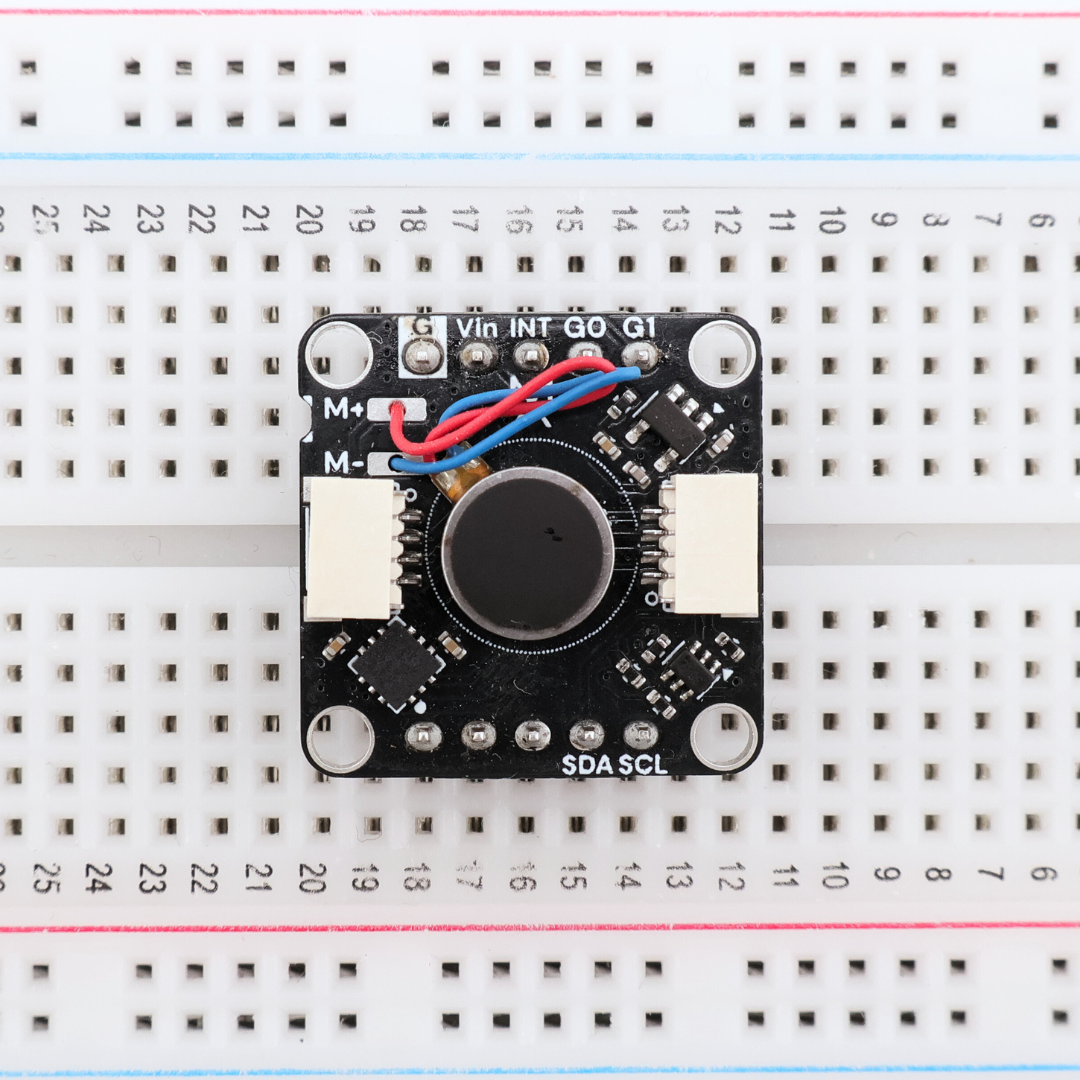

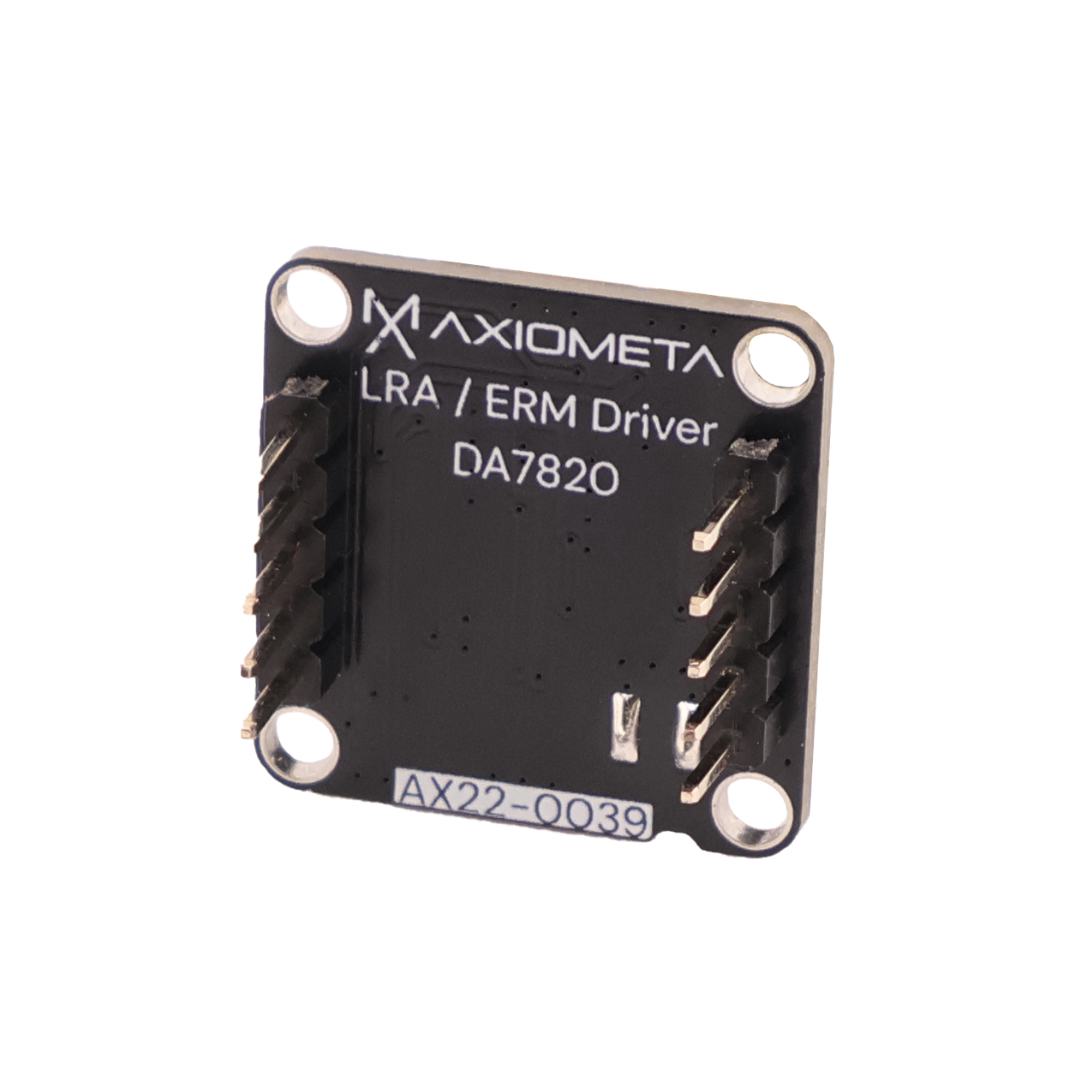

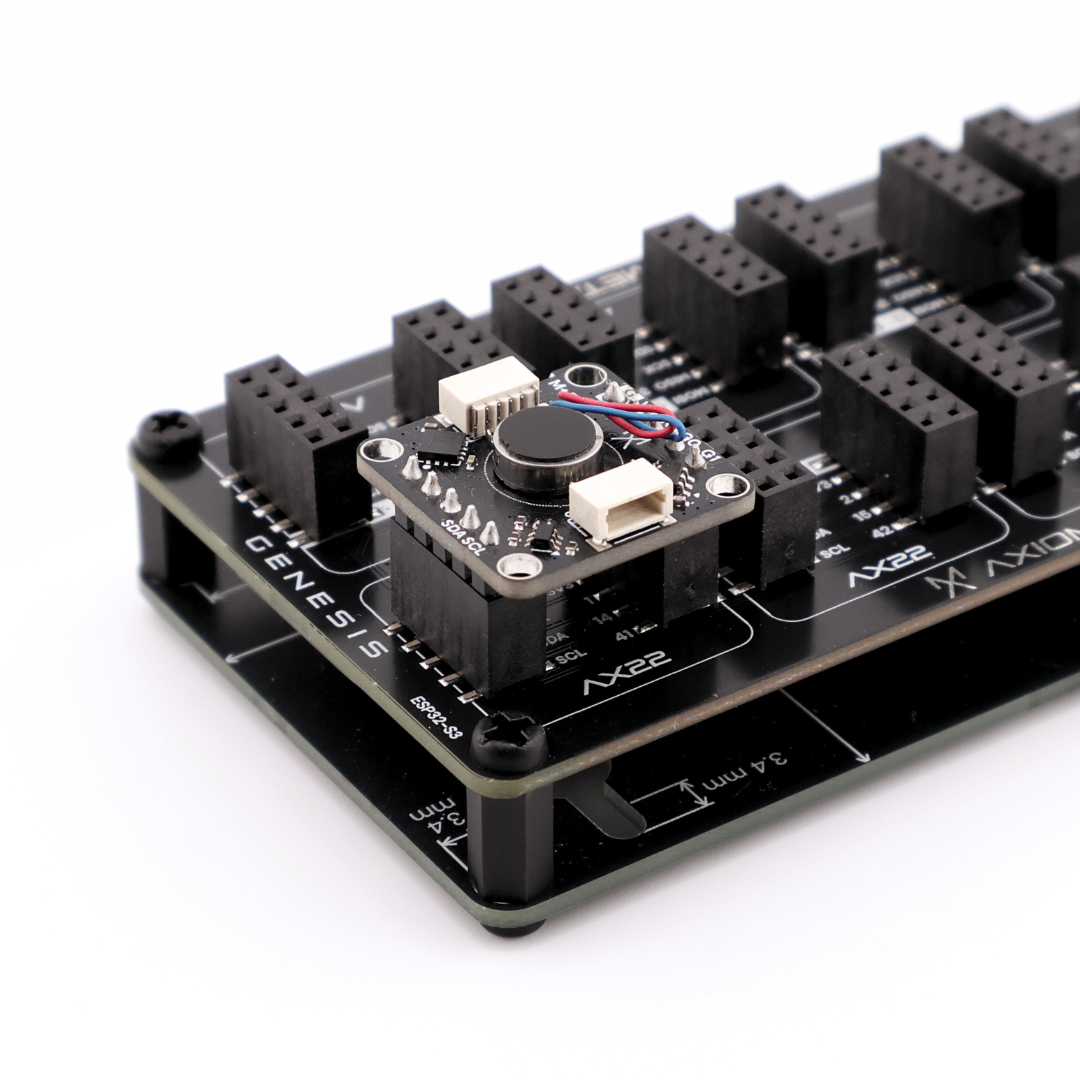

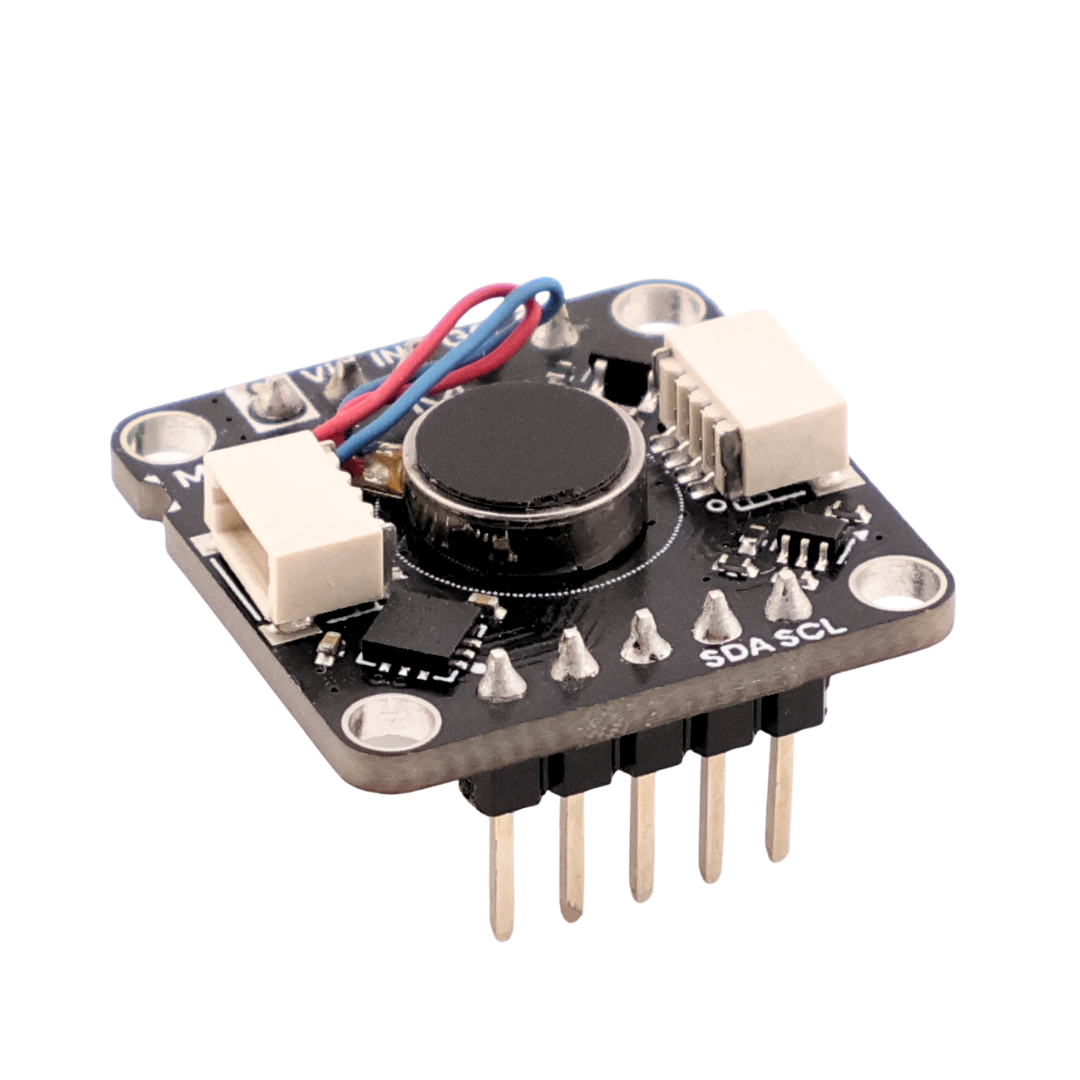

This module integrates the LD0825BC linear resonant actuator (LRA) with a DA7820 haptic driver on a compact 22 × 22 mm PCB. The DA7820 is designed for LRAs and automatically handles resonance tracking at 240 Hz, ensuring strong and consistent tactile feedback with minimal code. It drives the motor with a 1.2 Vrms AC signal and up to 90 mA while protecting it with kick-start and braking control. The module also includes Stemma QT connectors for quick I²C integration and chainable connections. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- LD0825BC Linear Resonant Actuator
- DA7820 Haptic Driver
- I²C Interface
- 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
