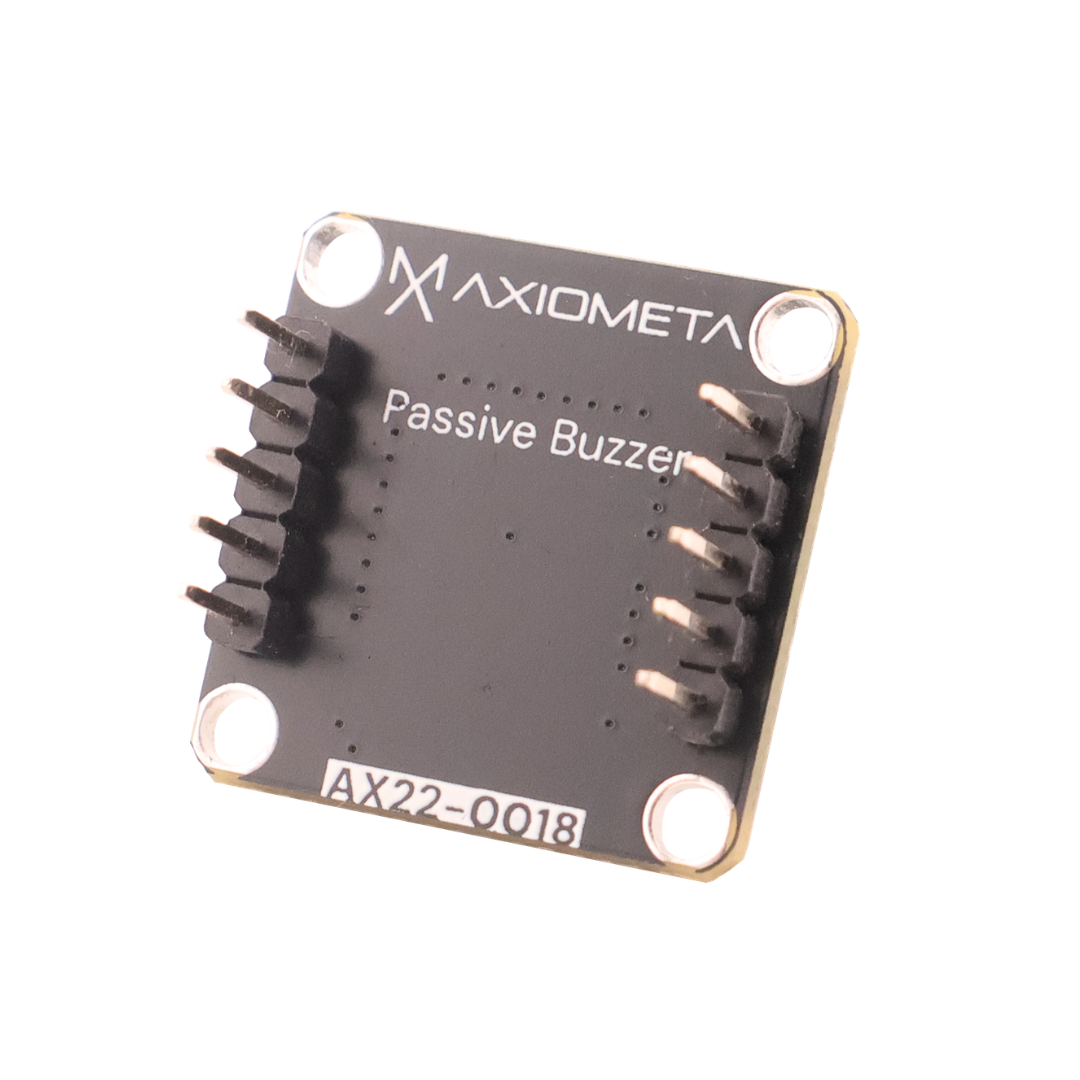

Passive Buzzer

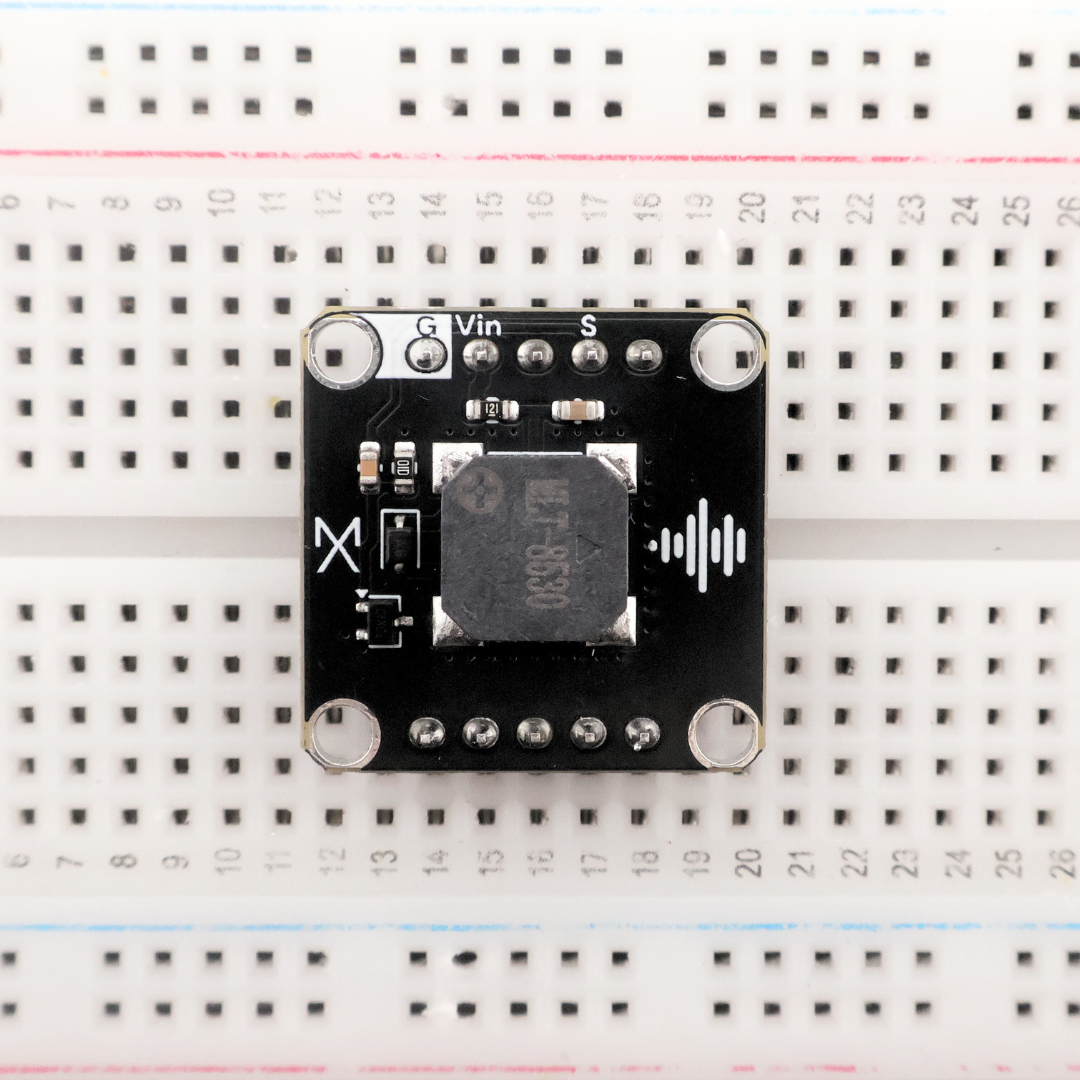

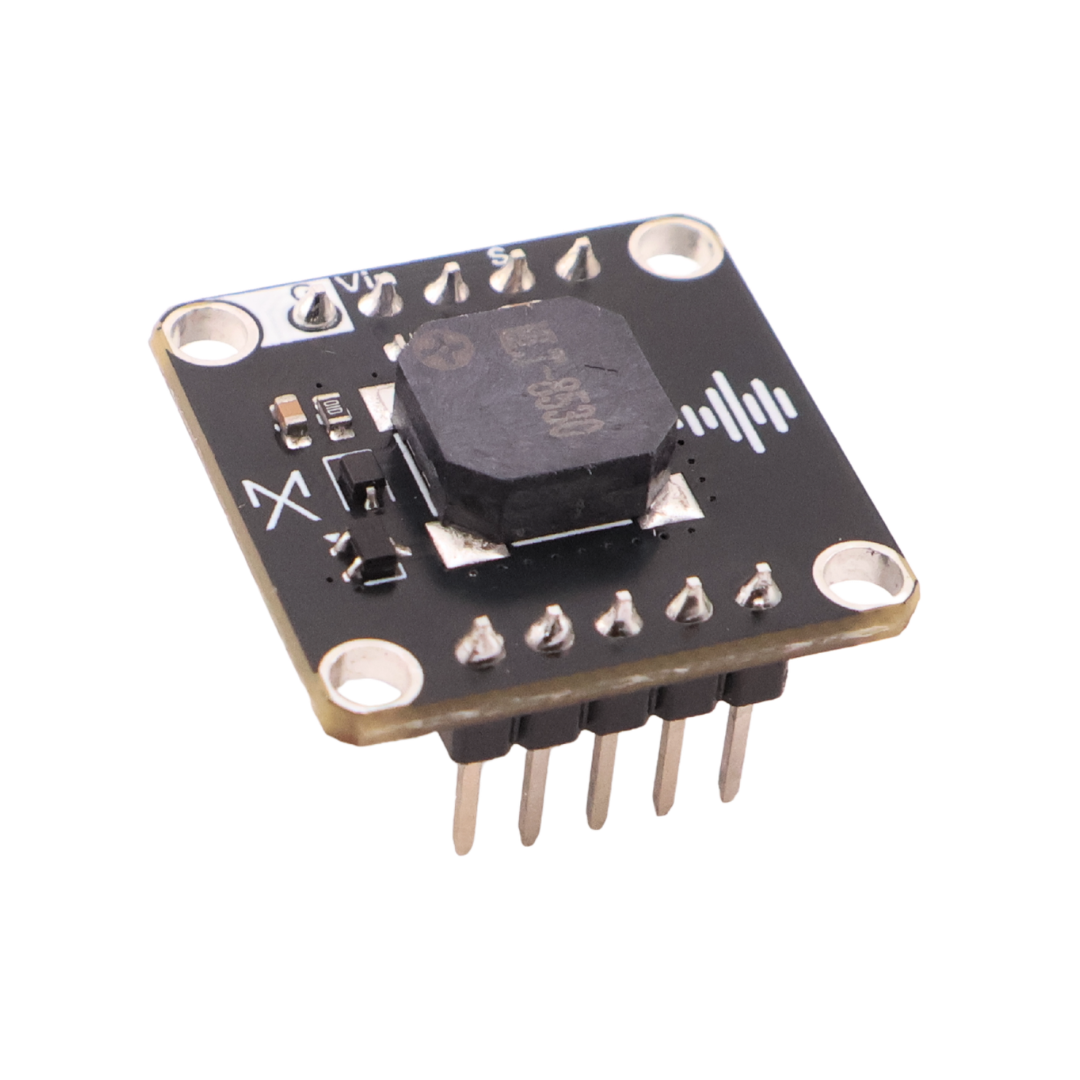

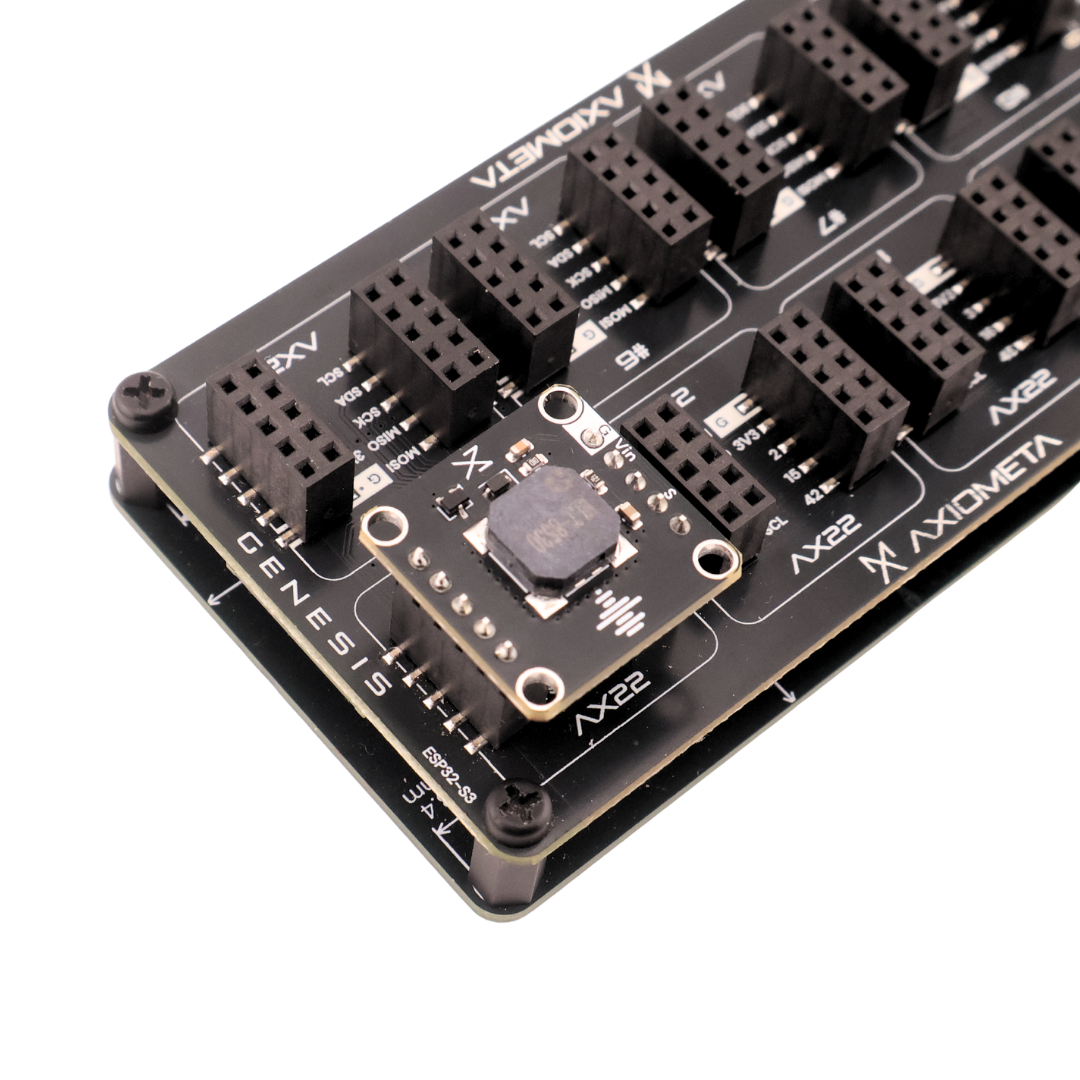

Add audio feedback to your projects with this compact passive buzzer module. Built around the MLT-8530 electromagnetic buzzer, it generates tones when driven with a PWM signal at 2.7 kHz, making it perfect for alerts, alarms, or simple melodies. Unlike active buzzers that only produce one tone, this passive design lets you control pitch and create different sounds by varying the frequency. At 80dB output, it's loud enough for notifications without being overbearing. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- MLT-8530 Electromagnetic Buzzer
- PWM-Driven Tone Generation
- Frequency Control via Software
- 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
