Push Button

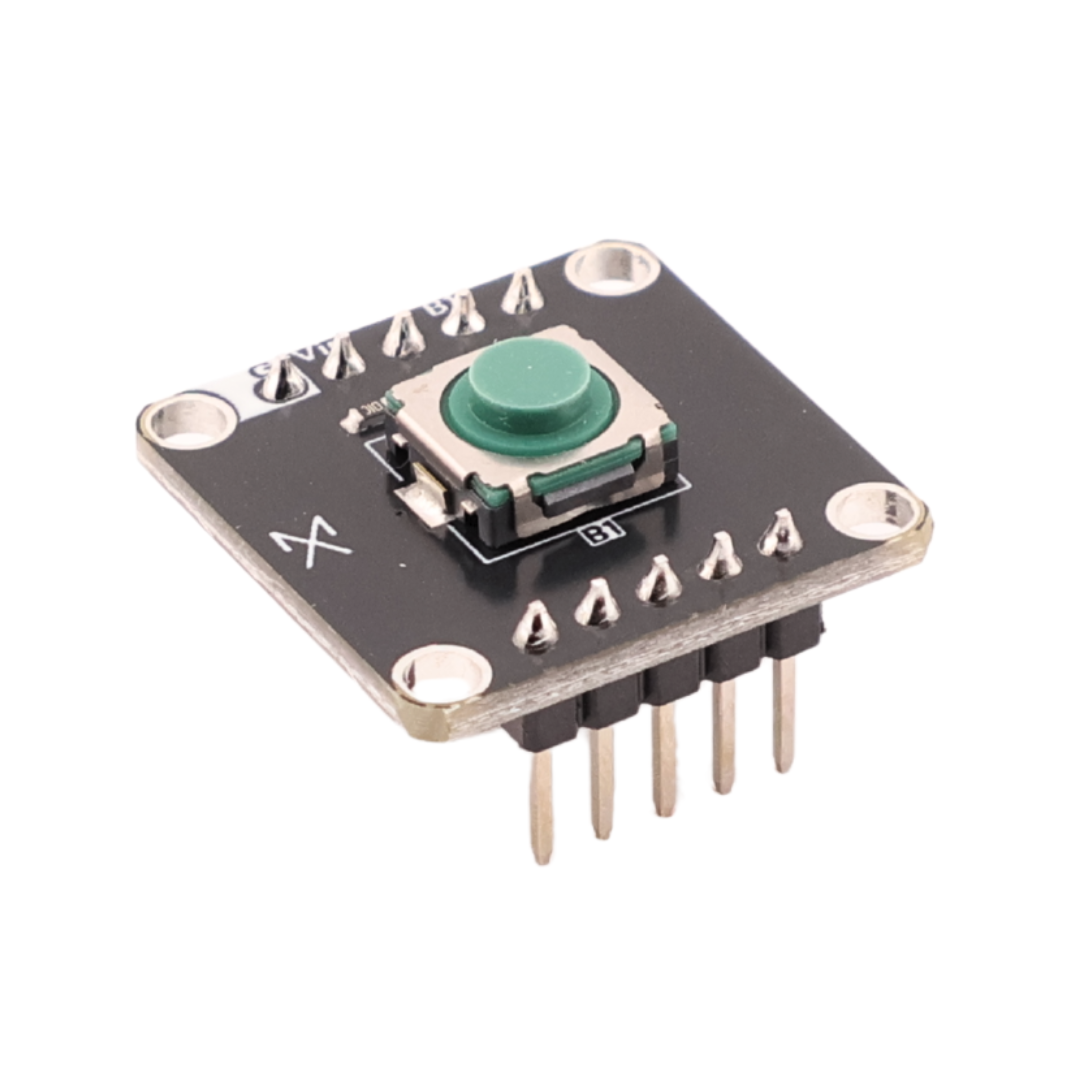

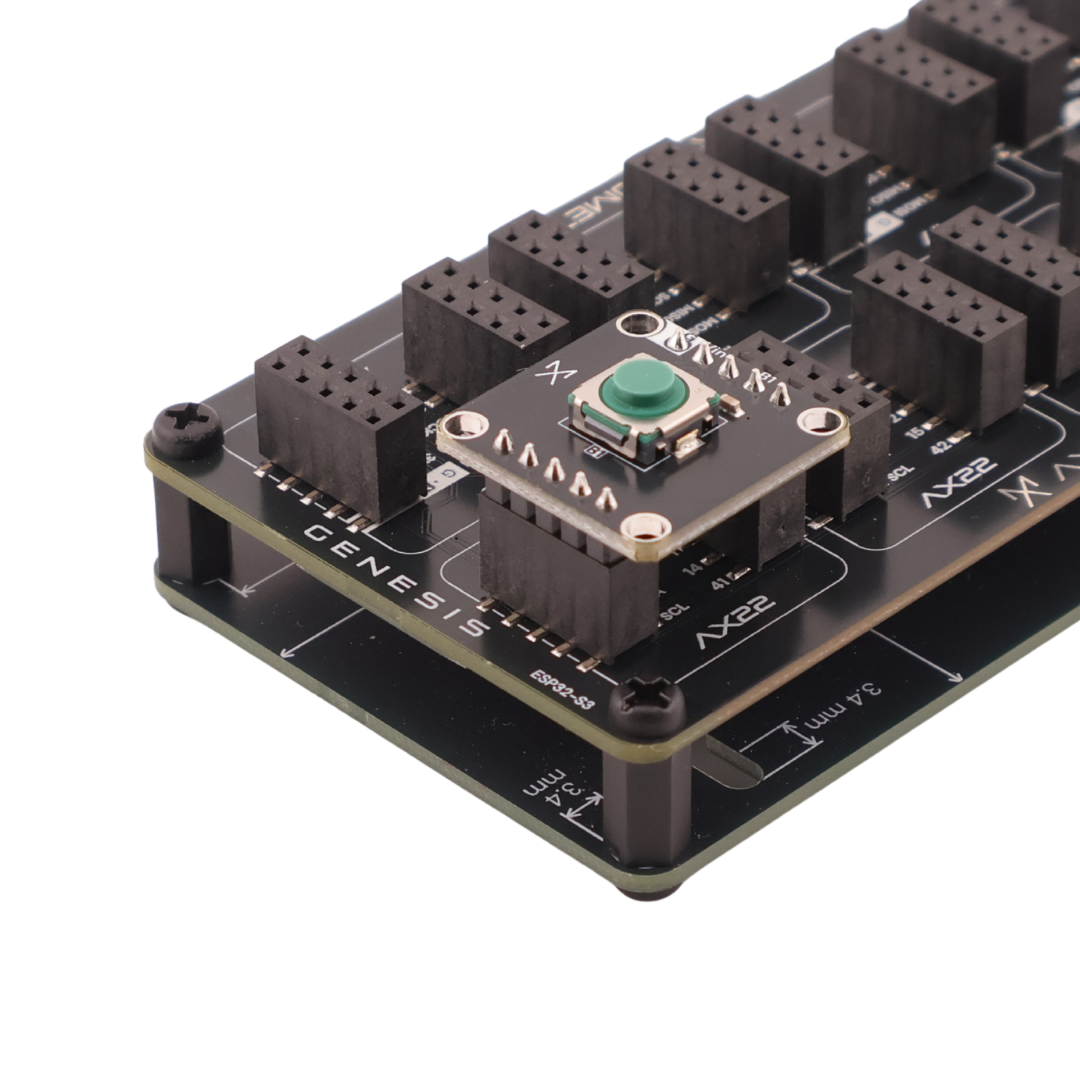

This module features an ALPS Alpine SKSTADE010 tactile push-button mounted squarely on a 22 × 22 mm PCB. The momentary, normally-open switch delivers crisp, 160 gf actuation with a satisfying “click,” rated for 50 mA @ 12 V and over a million cycles. An on-board pull-up resistor and a debounce circuit. Drop it into any backplane to add reliable user input for resets, mode selects, menu navigation, or game controls wherever precise, tactile feedback is essential. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- ALPS Alpine SKSTADE010 Tactile Switch
- Momentary, Normally-Open
- 10 kΩ Pull-Down Resistor
- 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
