Rotary Switch (6-Position)

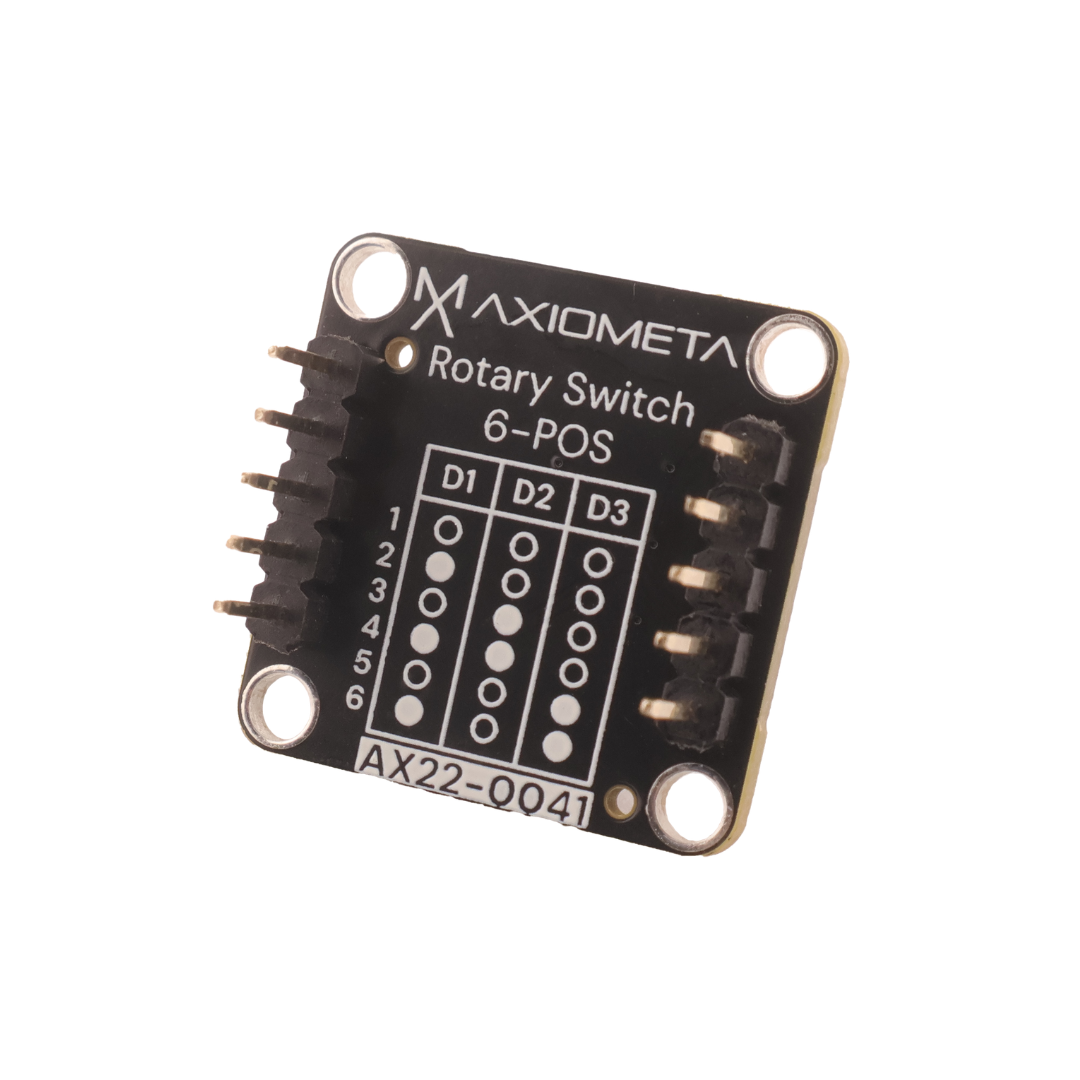

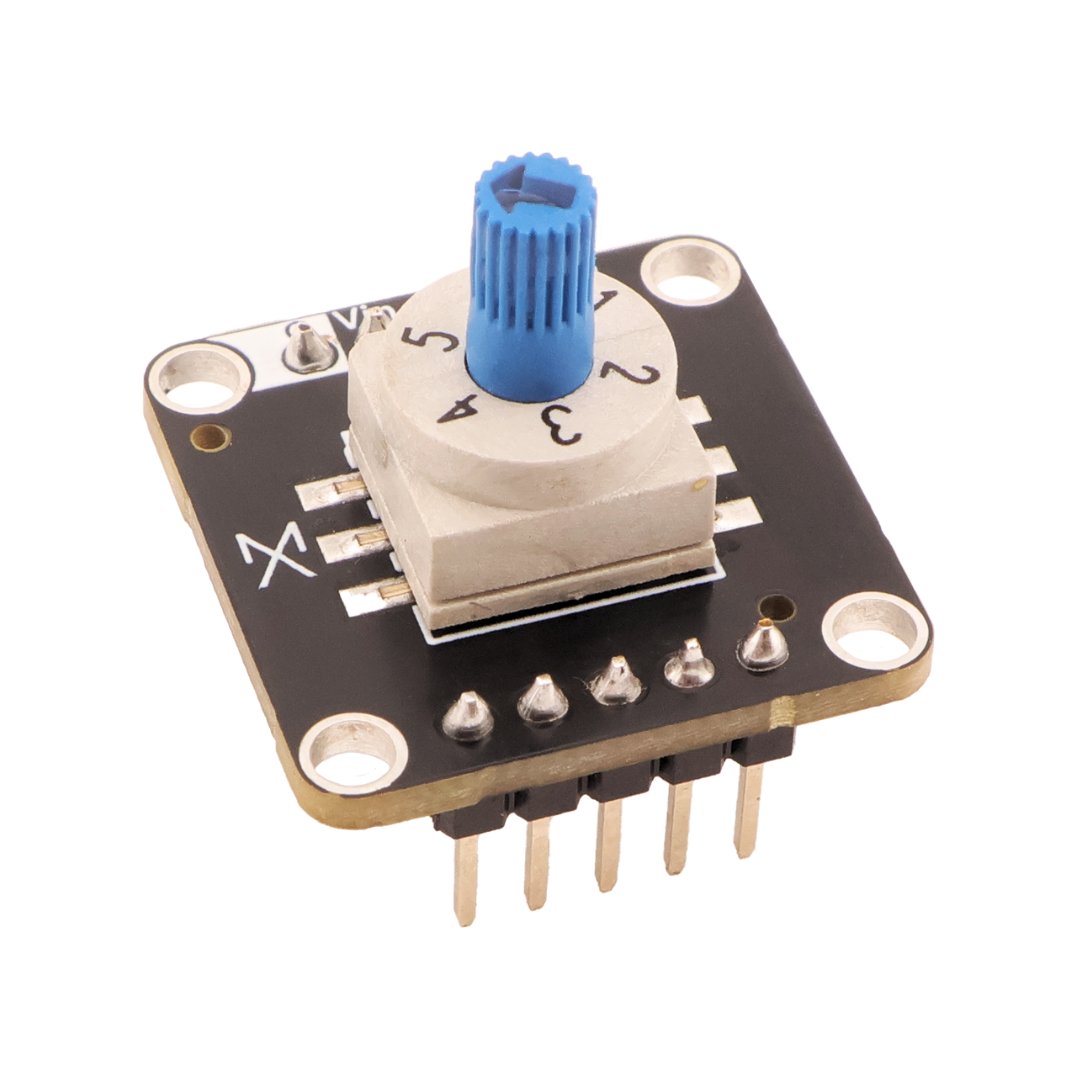

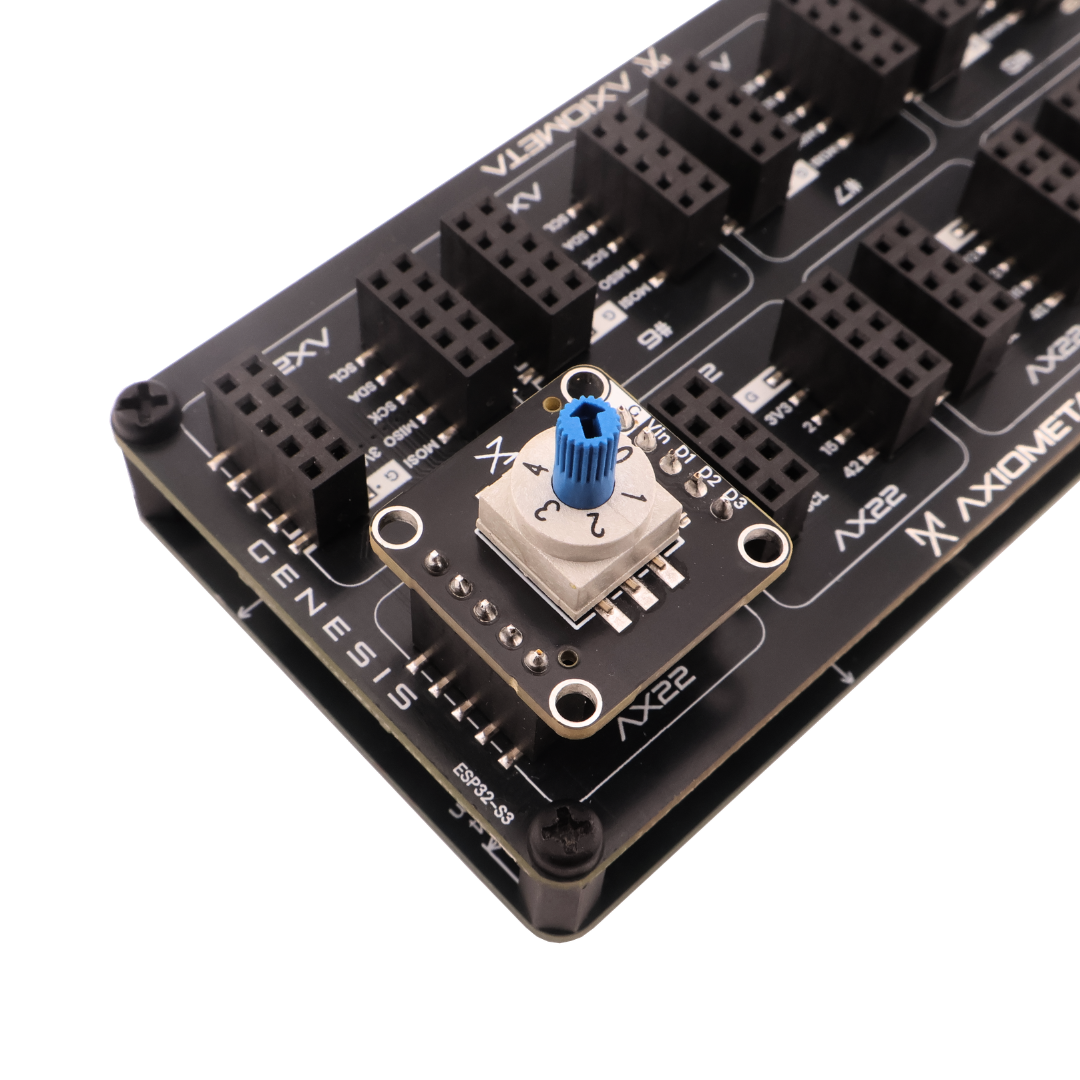

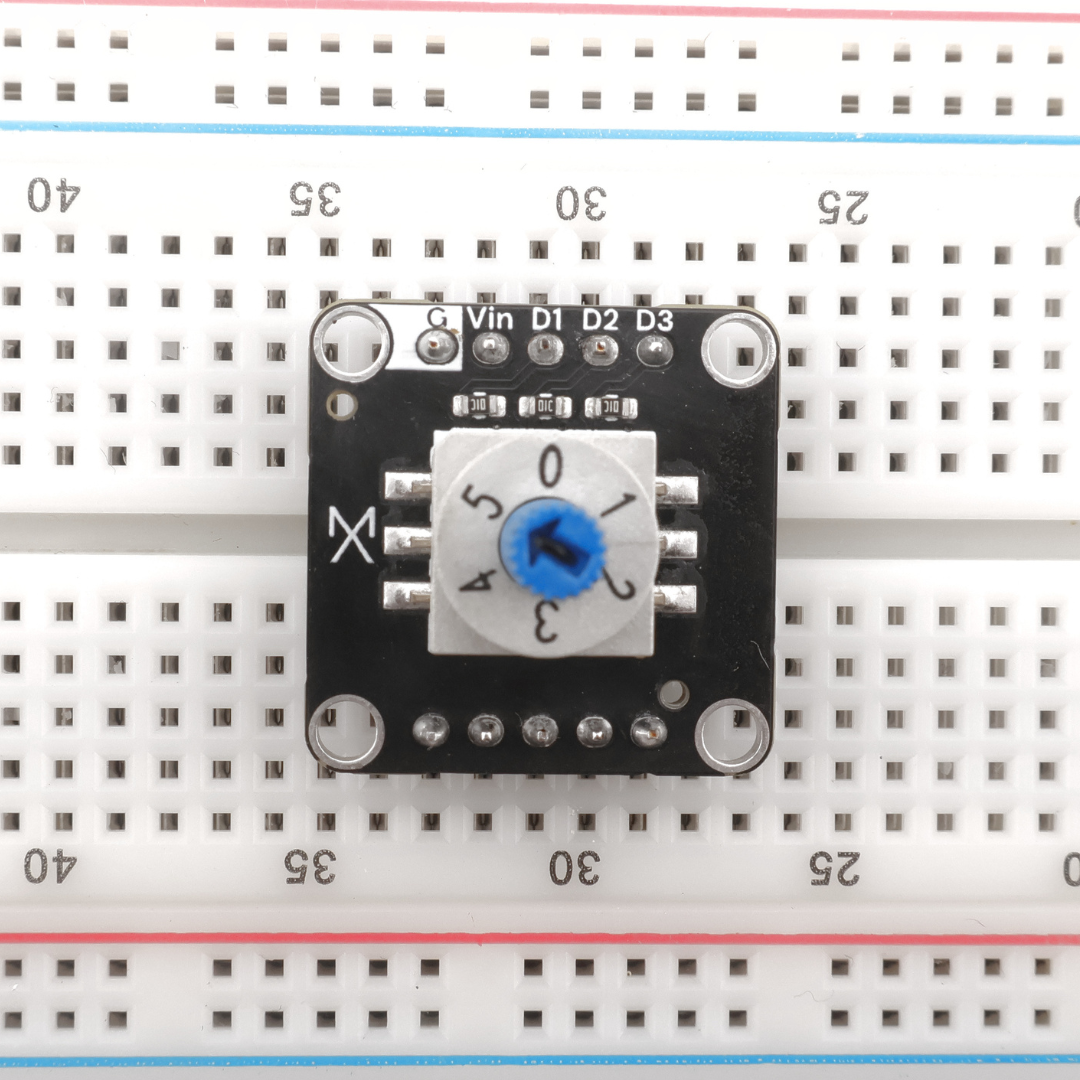

This module features a 6-position mechanical rotary switch on a compact 22 × 22 mm PCB. Each detent corresponds to a fixed, discrete setting, outputting a unique binary code across three digital. With its direct GPIO interface, it is ideal for selecting modes, presets, or user-defined states in embedded systems. Tactile feel and noise, this switch integrates cleanly into AX22-based projects like menu selectors, hardware profiles, or multi-function toggles. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- 6-Position Mechanical Rotary Switch
- Discrete Position Detents
- Analog / Digital Output
- 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
