Servo Adapter

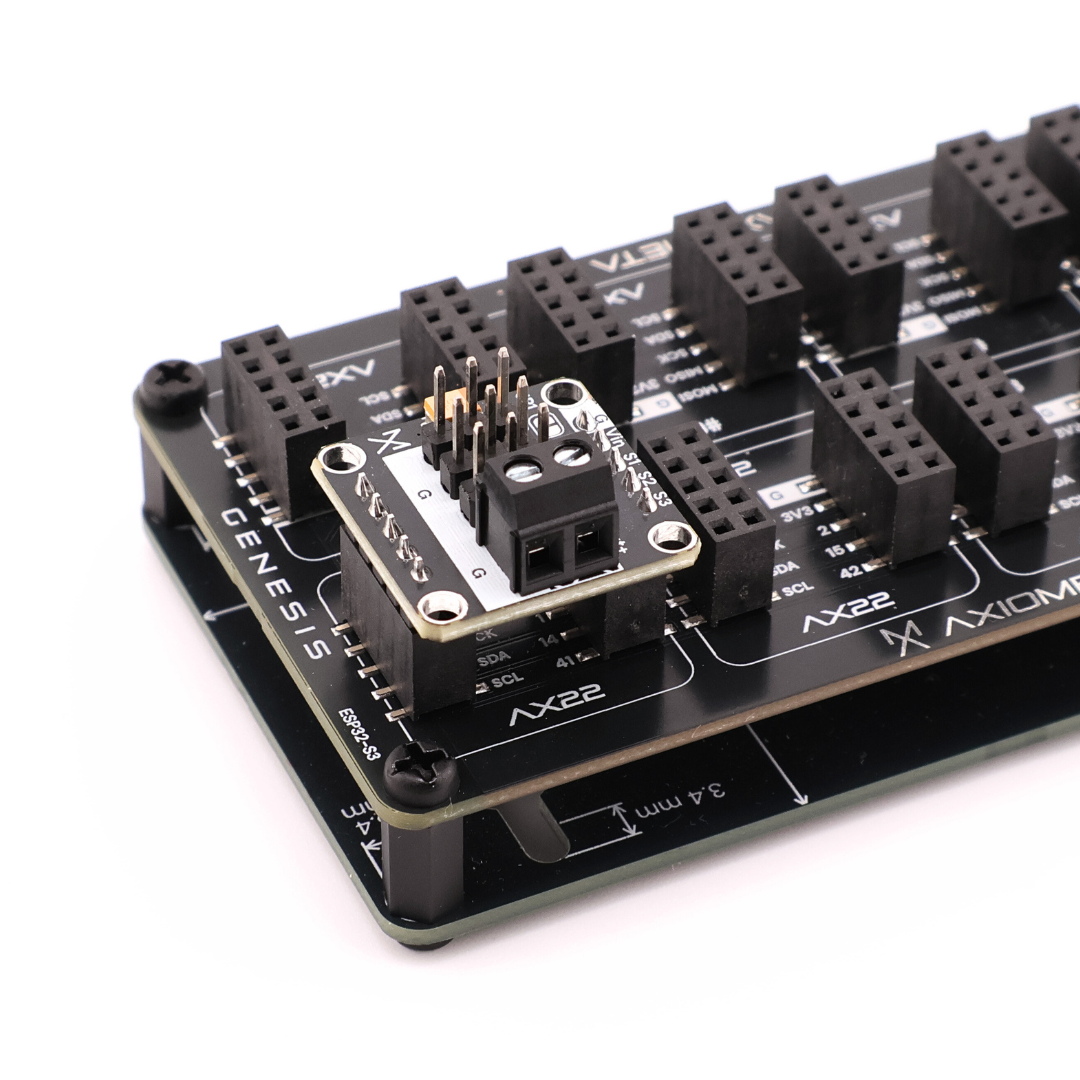

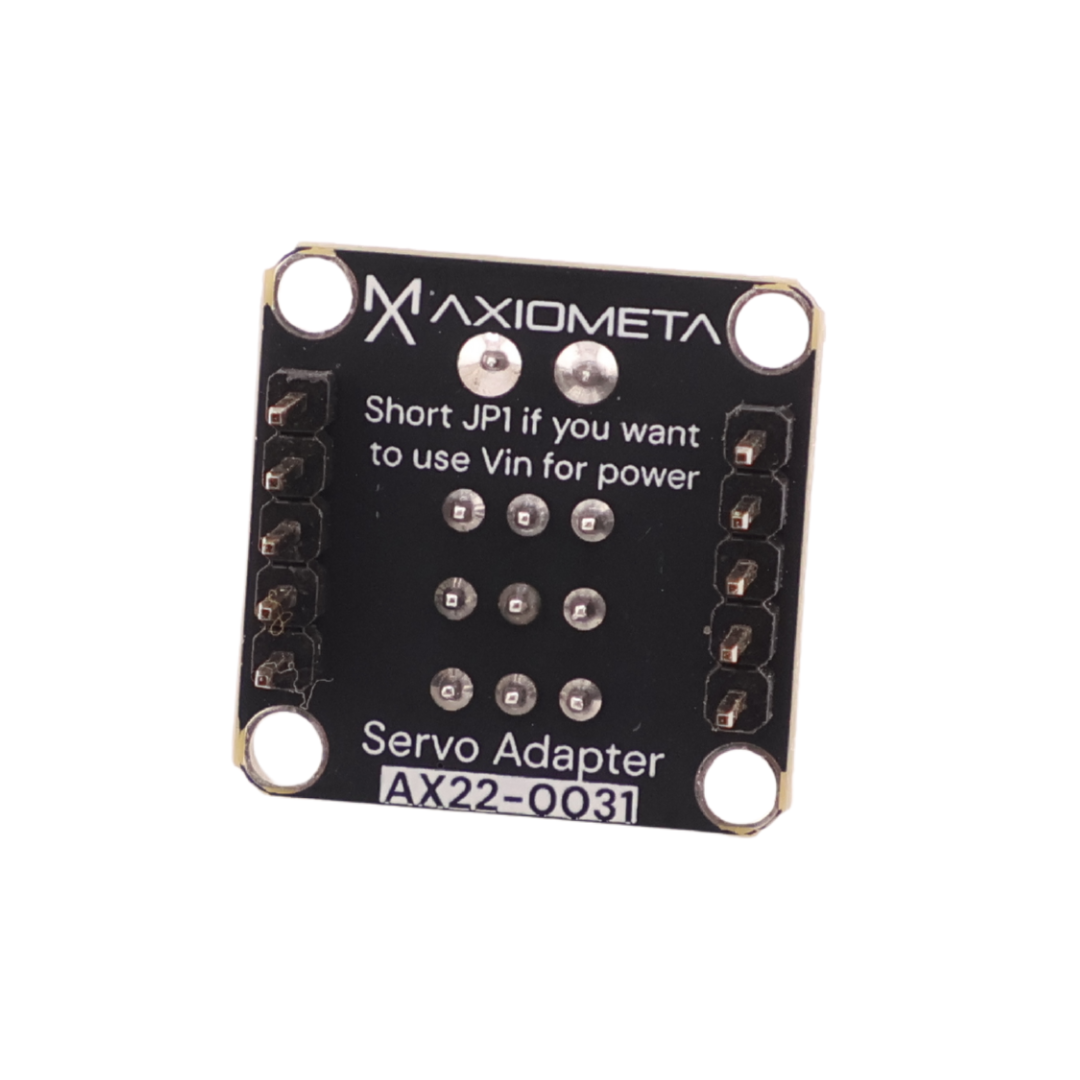

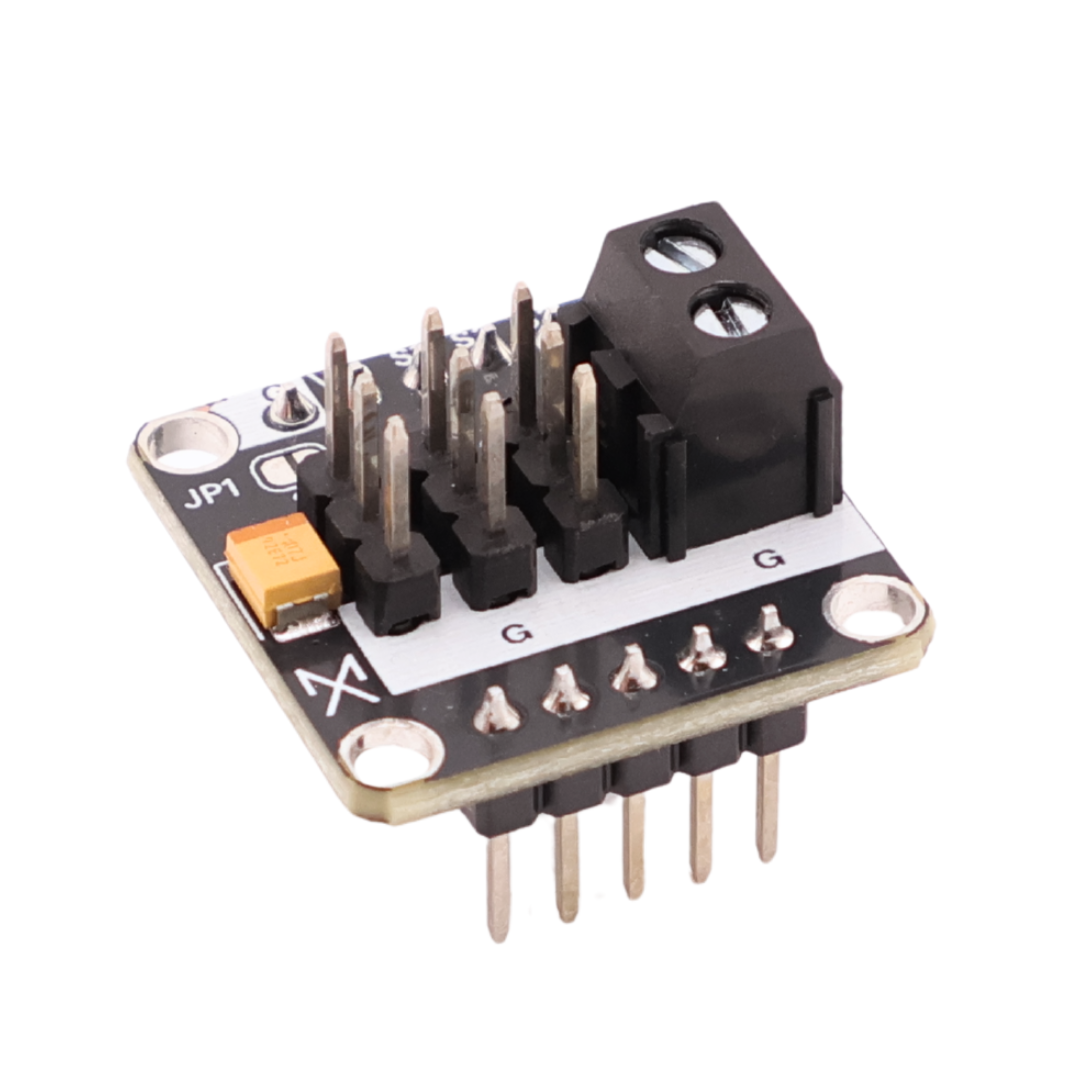

Need to plug in hobby servos without turning your build into a wiring octopus? This board does the trick. It brings three 3-pin male headers (Signal / Vin / GND) out to the edge of the 22 × 22 mm footprint so standard female RC-servo leads snap straight on no breadboards, no loose jumpers. Because AX22 Vin is only 3.3V an additional power screw headers are provided so you can provide independent motor power. However, if you insist on 3.3V you need to solder one jumper pad. Drop it into any backplane and power three servos (or ESCs, LEDs, etc.) from one neat, protected hub ideal for walkers, gimbals, pan-tilts, or animatronics controlled from Arduino IDE, MicroPython, or MicroBlocks. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- 3× Servo Headers (Signal/Power/GND)
- Screw Terminal for External Power
- PWM Signal Pass-Through
- 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Circuit Schematic
3D Model (STEP)
Pinout Diagram
