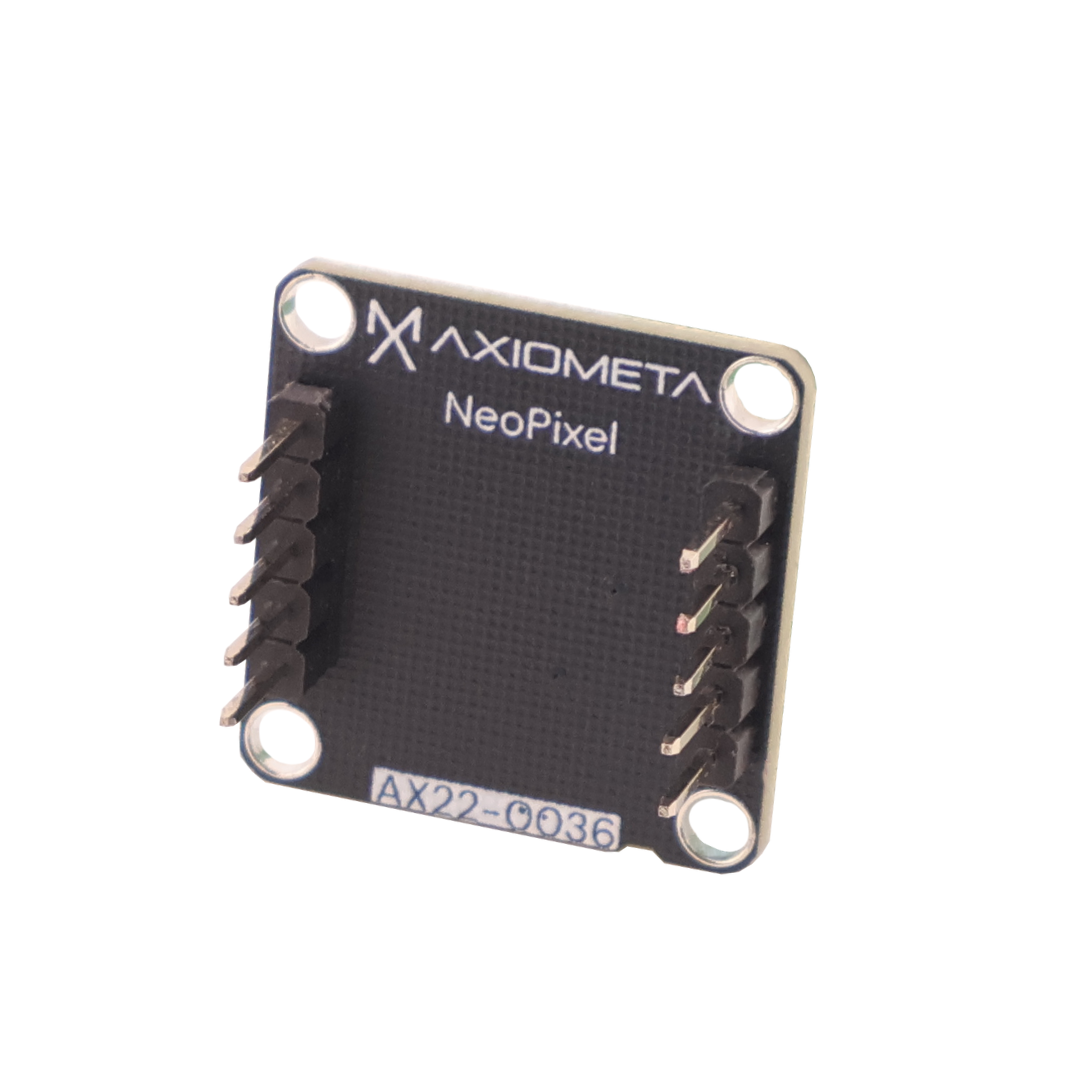

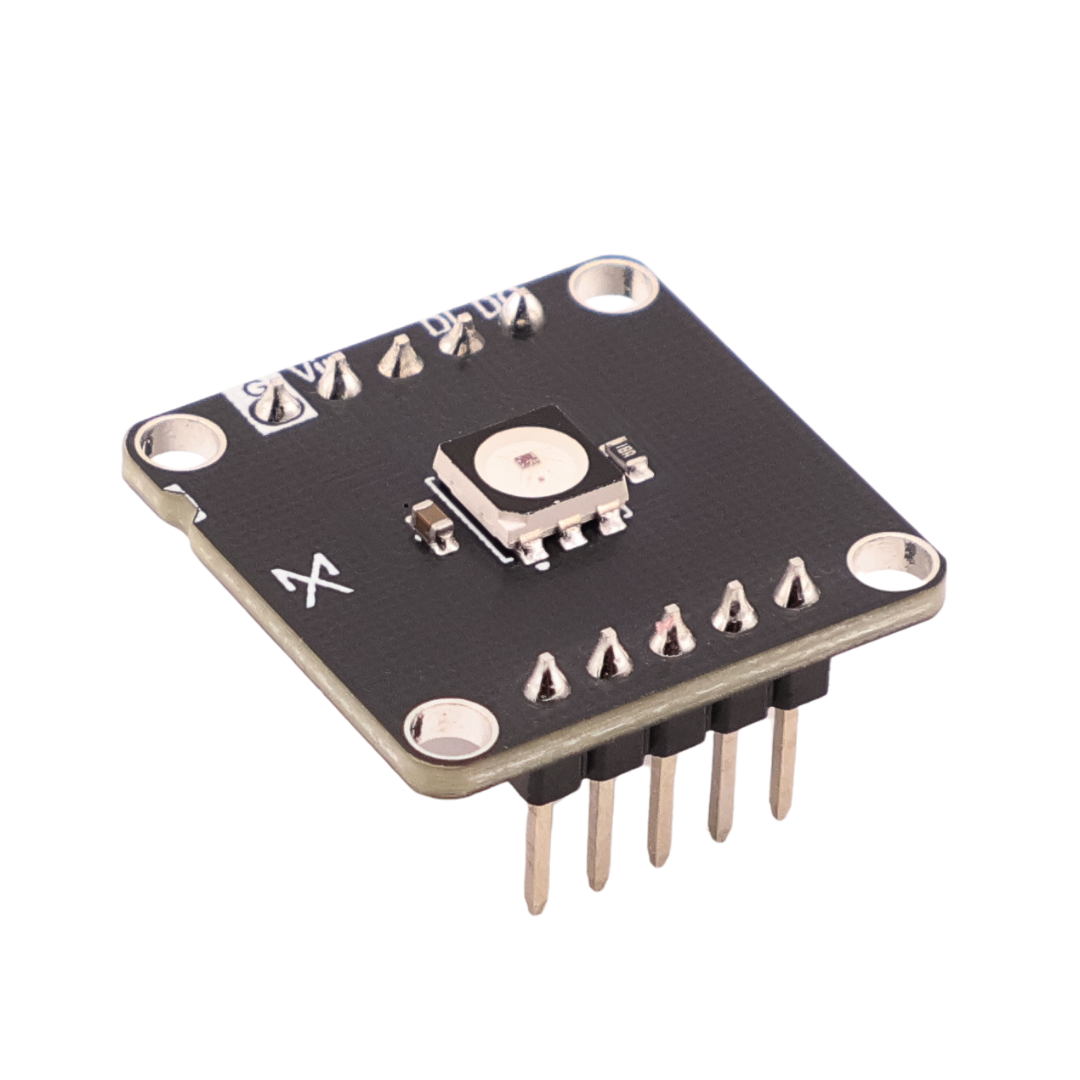

Single NeoPixel LED

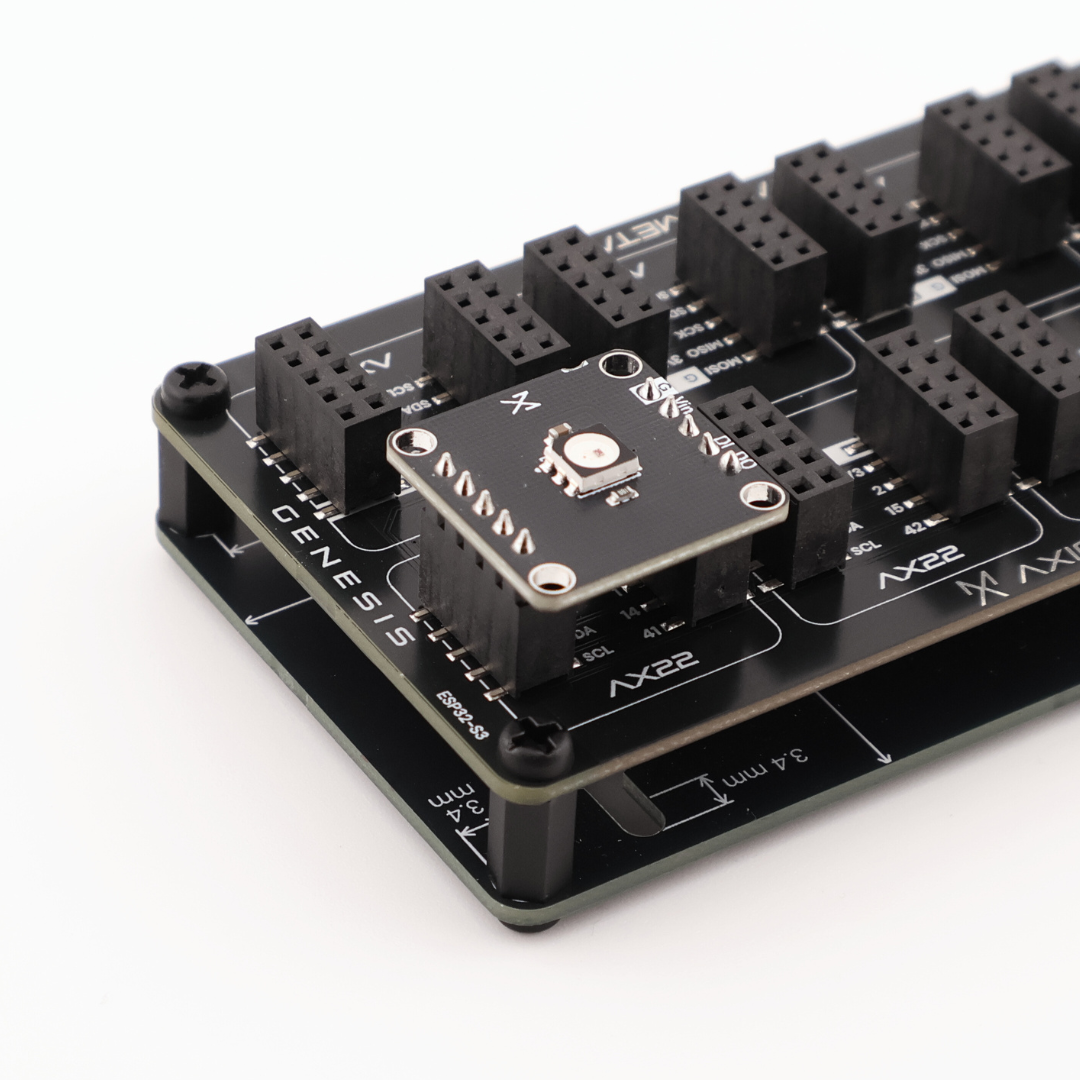

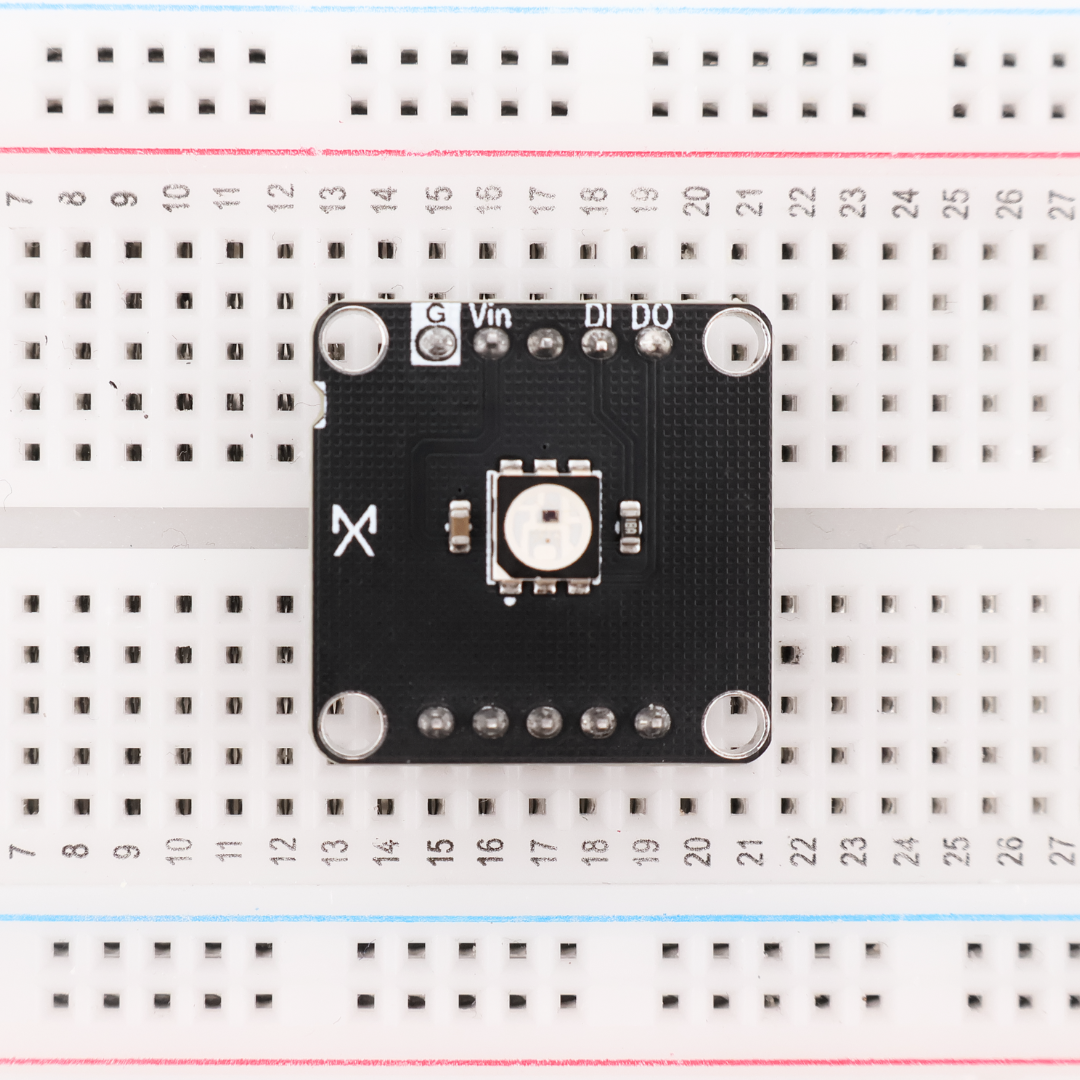

This module features a bright WS2812B-compatible RGB NeoPixel with on-board decoupling and both Data-In and Data-Out pins for easy daisy-chaining. Housed on a tidy 22 × 22 mm PCB, it lets a single microcontroller pin address dozens NeoPixels in sequence. Just send standard NeoPixel data and the module takes care of color mixing, PWM dimming, and timing internally. Perfect for displays, mood lighting, or interactive builds that demand vivid, individually addressable LEDs. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.

- 22 mm × 22 mm Board
- 4× ⌀2.7 mm Mounting Holes
- WS2812B-Compatible RGB LED
- Data-In and Data-Out for Daisy-Chain
- Single-Wire Digital Interface
- 3.3 V, 5.0 V Compatible
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

Material Datasheet
Circuit Schematic
3D Model (STEP)
Pinout Diagram
