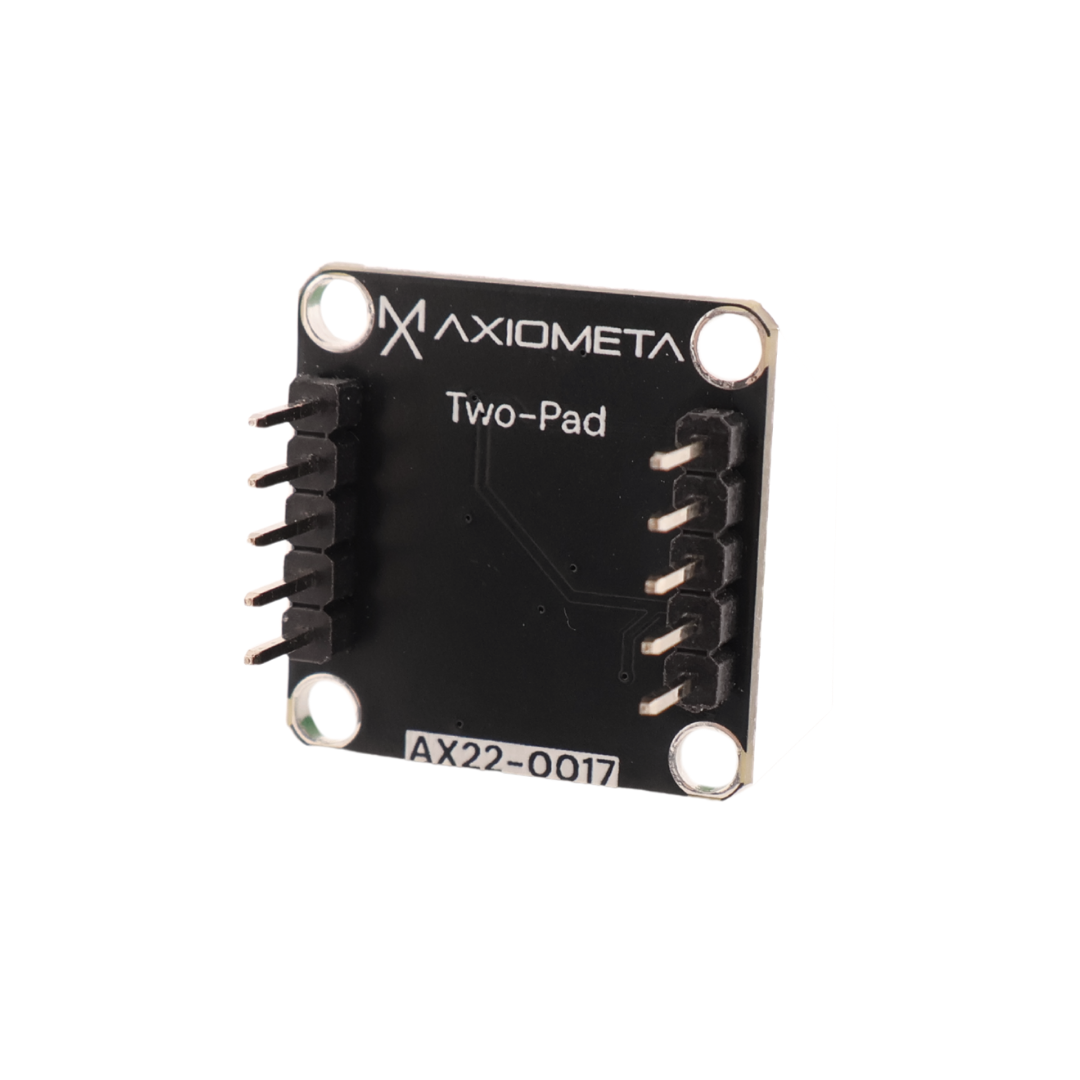

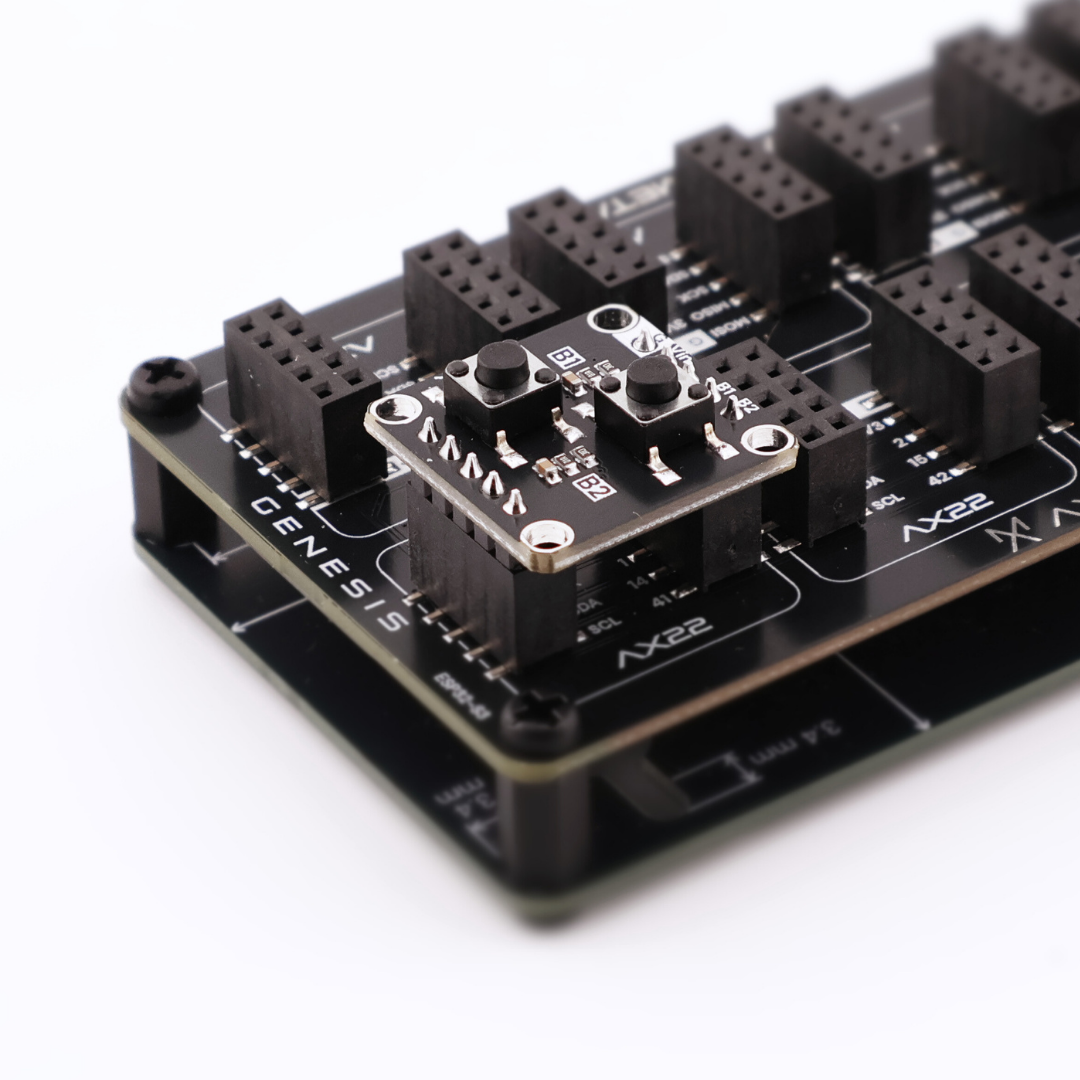

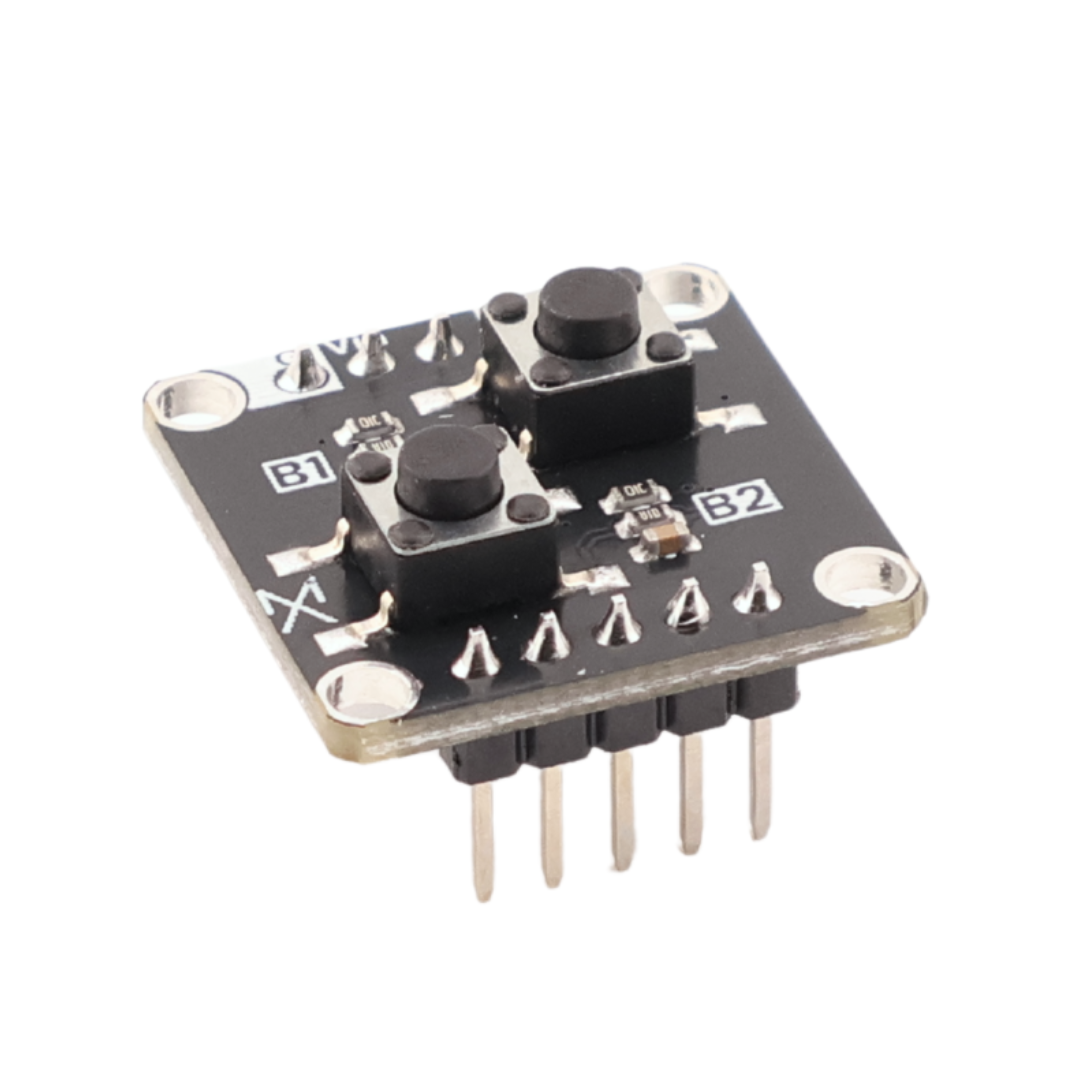

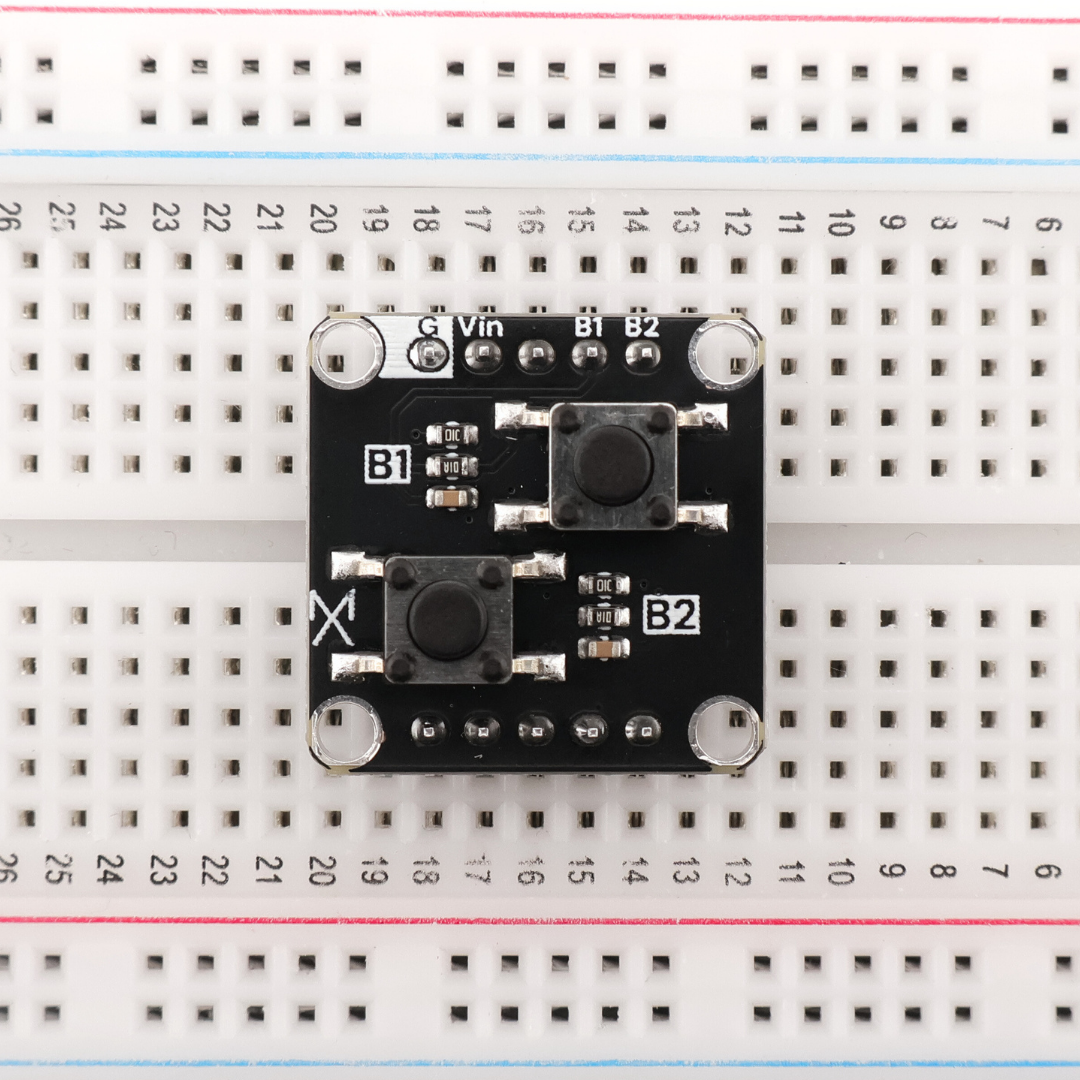

This board mounts two tactile push buttons on a compact 22 × 22 mm PCB in a 45 ° diagonal layout just like the classic “A/B” arrangement on vintage handheld gamepads. Each switch is pre-wired with its own 10 kΩ pull-up resistor and debounce. Drop it into any backplane to add game-style input, dual-function menu selects, or start/stop control in seconds, whether you’re coding in the Arduino IDE, MicroPython, or MicroBlocks. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.
- 22 mm × 22 mm Board - 4× ⌀2.7 mm Mounting Holes - 2× Tactile Push Buttons (45° Diagonal) - Classic A/B Button Layout - 10 kΩ Pull-Down Resistors - 3.3 V, 5.0 V Compatible - Arduino IDE Compatible - MicroPython Compatible - MicroBlocks Compatible
