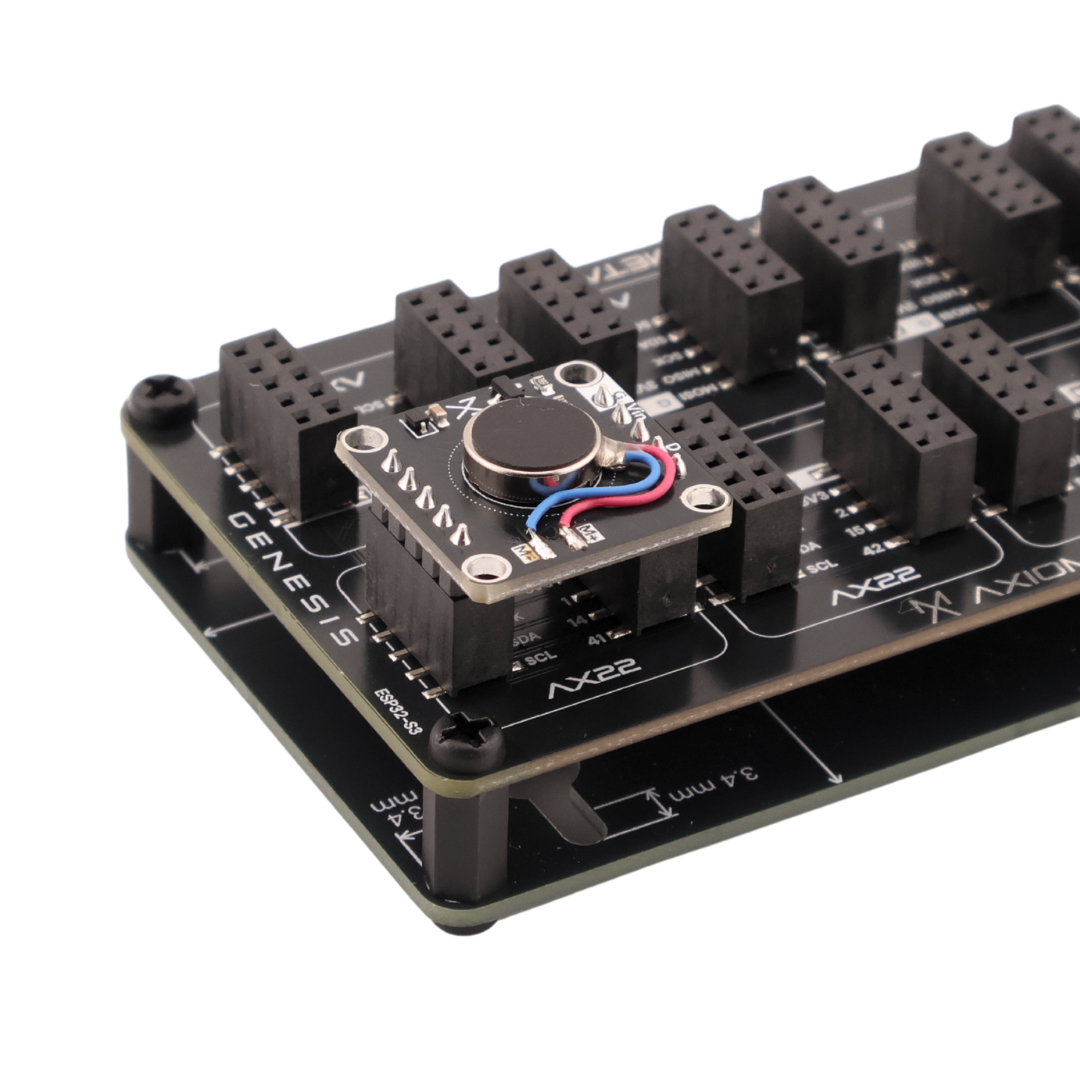

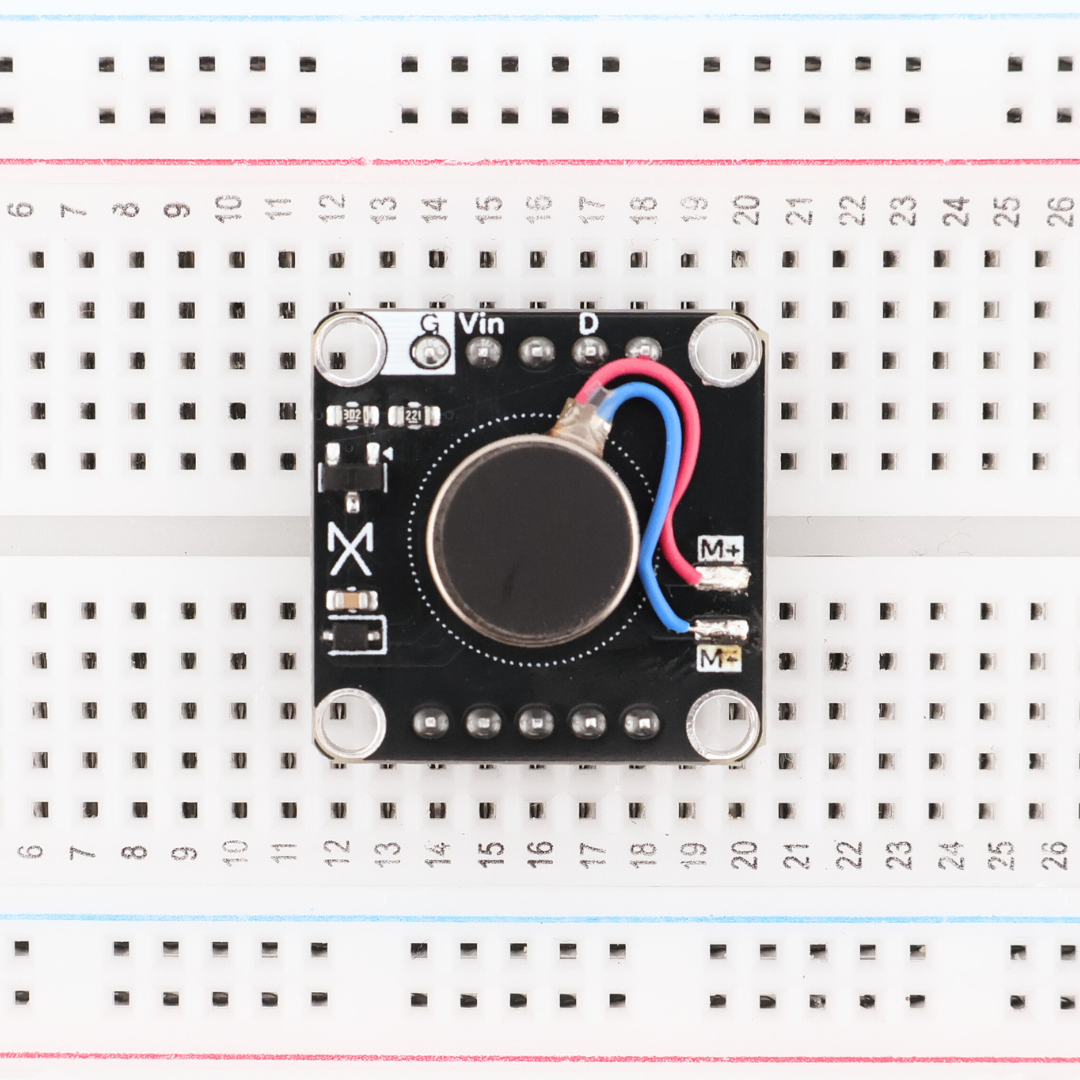

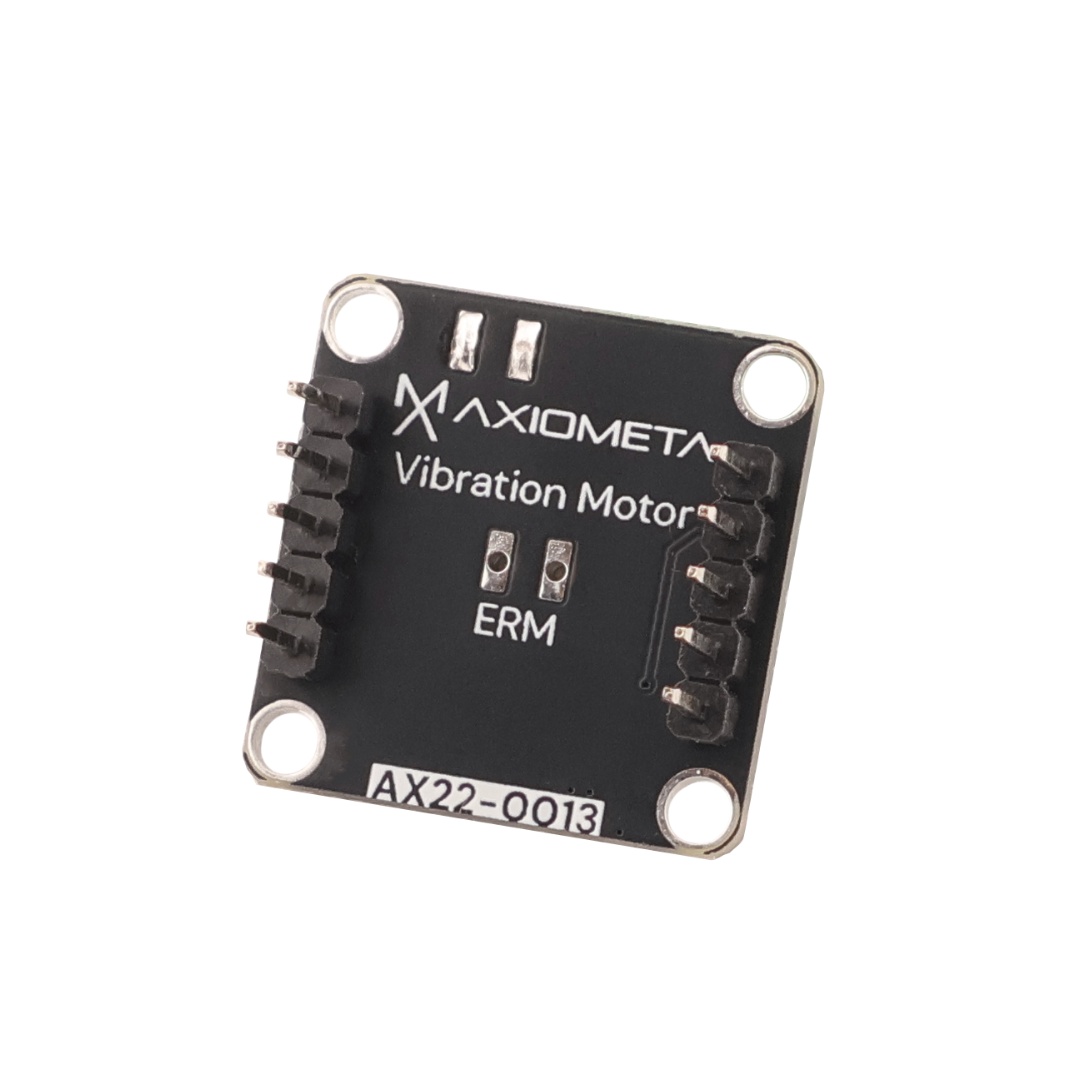

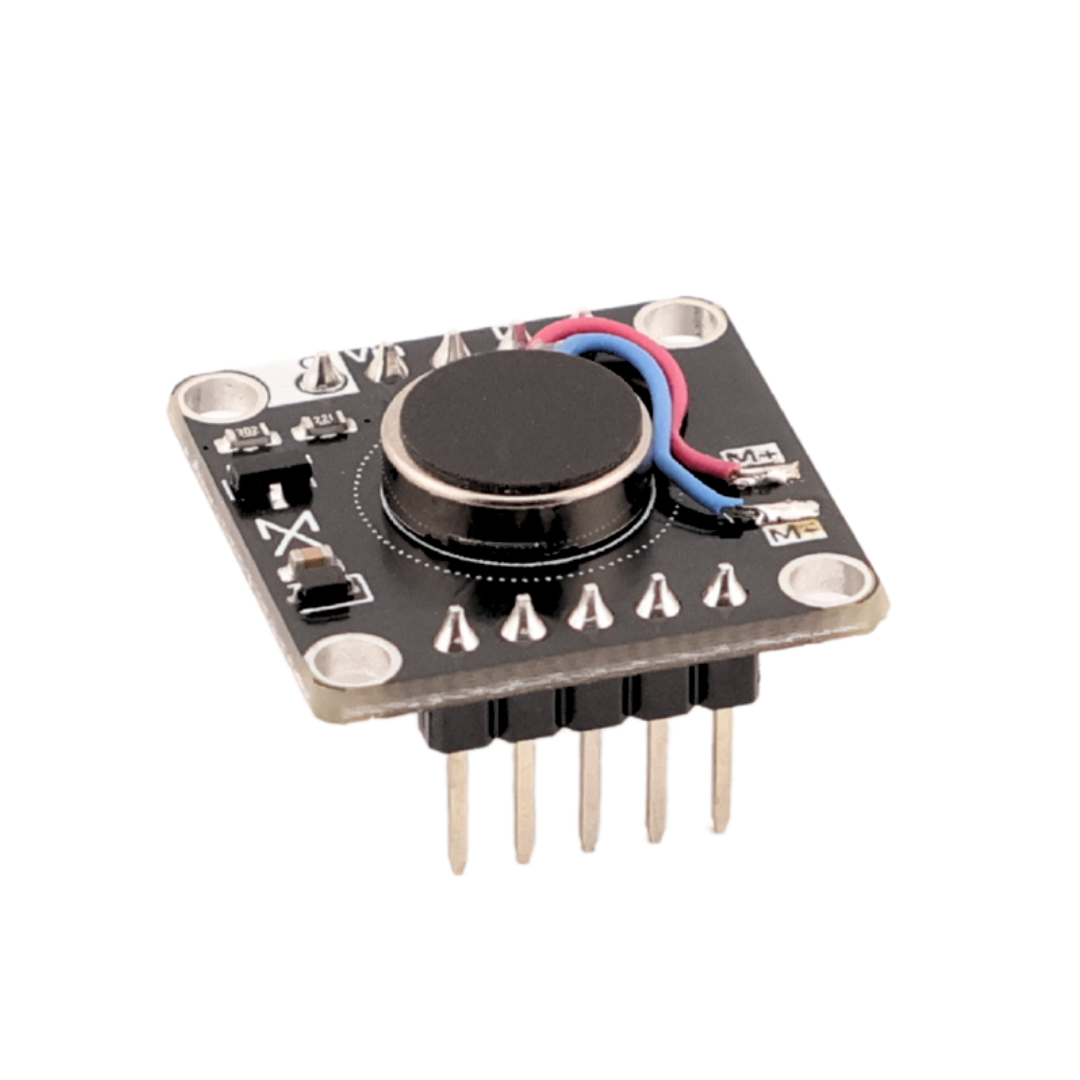

This board seats a 12000rpm flat eccentric-rotating-mass (ERM) motor on a 22 × 22 mm PCB and adds a low-R MOSFET driver, so you can trigger crisp haptic feedback with a single active-high GPIO pin. A fly-back diode and bulk capacitor tame startup surges, while the driver lets even 1.8 V logic pull the 90 mA load safely. Use it standalone with any microcontroller, or snap it into the Genesis Modular system from Axiometa for plug-and-play integration. Works with Arduino IDE, MicroPython, or MicroBlocks.
- 22 mm × 22 mm Board - 4× ⌀2.7 mm Mounting Holes - 12000 RPM Eccentric Rotating Mass Motor - MOSFET Driver Onboard - Digital Control (On/Off or PWM) - 3.3 V, 5.0 V Compatible - Arduino IDE Compatible - MicroPython Compatible - MicroBlocks Compatible
